Data sheet

Ericsson Private 5G Compact A2415

2025-01-07T07:00:00.000Z

Ericsson Private 5G Compact includes plug-and-play cellular access points (CAPs) that support the 4G LTE CBRS spectrum band 48. Sometimes referred to as small cells, these CAPs form the private radio access network (RAN) that cellular endpoints and clients connect to and are authenticated through the Ericsson Private 5G Compact Mobility Gateway. All indoor and outdoor CAPs work together to create contiguous private network connectivity across the entire customer landscape.



Coverage Measured in Miles



Cellular access points offer significant coverage advantages over Wi-Fi outdoors and public cellular services indoors. These CAPs extend far beyond the limited range of Wi-Fi, providing reliable connectivity for extensive outdoor industrial, agricultural, and operational areas. Indoors, they surpass public cellular services in coverage and capacity, tailored to the specific requirements of the facility. Unlike public cellular, which can suffer from signal degradation and congestion, Ericsson Private 5G Compact CAPs ensure robust signal penetration and dedicated bandwidth, facilitating advanced applications such as automation, secure communications, and real-time data analytics in environments like warehouse yards and industrial manufacturing facilities.



Reliability You Can Count On



Ericsson Private 5G Compact excels in network determinism, client mobility, and overall reliability, markedly outperforming Wi-Fi. PCNs ensure predictable network behavior with guaranteed bandwidth, essential for critical applications. Unlike Wi-Fi, where client devices determine handoffs, potentially leading to connectivity gaps, Ericsson Private 5G Compact manages client mobility seamlessly across multiple CAPs, ensuring devices maintain stable connections. This system-wide approach to managing connections enhances the reliability of the LAN, reducing downtime and maintaining consistent network performance.

Product PageNetCloud ServiceQuick Start Guide

The CAP is a TDD-LTE small cell with external antennas that provides connectivity to the SIM-authenticated devices in the private network.

INTERFACES
Ethernet:
  • 1 x GbE RJ45
  • 1 x GbE SFP†
Cellular:4 external, N-type female antenna connectors
GNSS/GPS:External GPS antenna, N-type connector
ENVIRONMENTAL
Temperature:
  • Operating: -40 °C to 55 °C (-40 °F to 131 °F)
  • Storage: -45 °C to 70 °C (-49 °F to 158 °F)
Humidity:
  • Operating: 5% to 90% non-condensing
  • Storage: 5% to 95% non-condensing
Ingress Protection:IP66
POWER
Input:-40 VDC to -57 VDC, nominal -48 VDC
Consumption:
  • Typical: 60 W
  • Maximum: 100 W
PHYSICAL

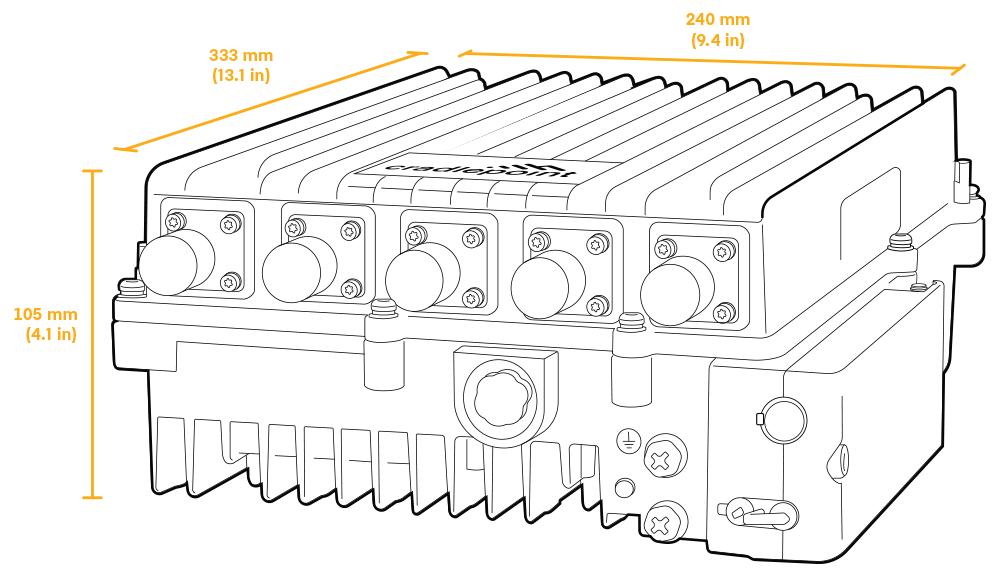

Size:333 mm x 240 mm x 105 mm (13.1 in x 9.4 in x 4.1 in)
Weight:7.5 kg (16.5 lbs)
CERTIFICATIONS
Safety:UL/cUL
Hazardous Locations:Class I Div 2 (North America)
Radio:FCC
Cellular:OnGo Alliance††
RADIO SPECIFICATIONS
Operating Modes:
  • Single Carrier (SC): Requires one 2-port antenna.
  • Dual Carrier (DC): Requires two 2-port antennas that create distinct sectors that operate independent from each other.
  • Carrier Aggregation (CA): Requires one 4-port antenna or two 2-port antennas.
Active Clients:
  • Single Carrier mode: Up to 128
  • Dual Carrier mode: Up to 256
  • Carrier Aggregation mode: Up to 128
Single Carrier Peak Rates (based on 20 MHz BW):

TDD Config 1

  • Downlink: 105 Mbps
  • Uplink: 28 Mbps

TDD Config 2

  • Downlink: 145 Mbps
  • Uplink: 14 Mbps

TDD Config 6

  • Downlink: 85 Mbps
  • Uplink: 35 Mbps
Dual Carrier Peak Rates (based on 40 MHz BW):

TDD Config 1

  • Downlink: 2x105 Mbps
  • Uplink: 2x28 Mbps

TDD Config 2

  • Downlink: 2x145 Mbps
  • Uplink: 2x14 Mbps

TDD Config 6

  • Downlink: 2x85 Mbps
  • Uplink: 2x35 Mbps
Carrier Aggregation Peak Rates (based on 40 MHz BW):

TDD Config 1

  • Downlink: 210 Mbps
  • Uplink: 56 Mbps

TDD Config 2

  • Downlink: 290 Mbps
  • Uplink: 28 Mbps

TDD Config 6

  • Downlink: 170 Mbps
  • Uplink: 70 Mbps
Carrier Aggregation:
  • Downlink: Up to 2 CA
  • Uplink: Up to 2 CA
MIMO:2x2
Modulation:
  • Up to 256 QAM DL
  • Up to 64 QAM UL
4G/LTE Bands:B48
Cellular Power:
  • Maximum 47 dBm EIRP
  • Maximum 30 dBm Tx power/port
Cellular Antennas:N-type male connectors, external (not included)
Channel Bandwidth:10 and 20 MHz
†1000baseLX, 1310nm, 10km optical SFP included (Qty 2)

††Certification in progress; availability coming soon.

Ericsson Private 5G Compact is comprised of a mobility gateway, cellular access point(s), and NetCloud Private SIMs, which all have corresponding NetCloud Service plans. For a complete end-to-end management solution, Ericsson Cradlepoint routers and adapters should be added to the system. For details on Ericsson Private 5G Compact features, refer to the summary on the Ericsson NetCloud Service webpage and the detail in the Ericsson NetCloud Service Features document. For more details and ordering information for the complete NCPN solution, see Ericsson Private 5G Compact Data Sheet.

Step 1: Select Private 5G Compact Cellular Access Point(s) (selection of one or more indoor/outdoor models)

Step 2: Select compatible external antennas

For details on other available cellular access points, see the following:

STEPSCOMPONENTDESCRIPTION
1Cellular Access Point(s)
  • Ericsson Private 5G Compact A2400 indoor cellular access point
  • Ericsson Private 5G Compact A2405 outdoor cellular access point
  • Ericsson Private 5G Compact A2415 outdoor cellular access point
2External antennaSelect one or more compatible external antennas

REGIONNCPN PACKAGE PLANDESCRIPTION†PART NUMBER
US only:CBRS Cellular Access Points — EssentialsPROMO — Outdoor A2415 CAP with AC power supply and line cord, no antennas included.PE0x-2415NM-CN
 Renewal — Cellular Access PointOutdoor A2415 — 1 yearPE01-NCESS-R
x = 4 or 6 years

†PROMO SKUs (promotional SKUs) are available for a limited time and add an extra year to the standard 3- or 5-year NetCloud Service Plan. Starting 07/01/2024, new subscriptions revert to the standard 3- or 5-year NetCloud Service Plan. All renewals have a 1-year duration.

All Ericsson Private 5G Compact hardware and software are sold as part of an Ericsson NetCloud Service package, which includes:

  • Ericsson Enterprise Wireless Solutions Global Service & Support for the full subscription term.
  • Hardware limited lifetime warranty for as long as they have a subscription license to an active Ericsson NetCloud Service plan.

A2415

One or two external antennas are required for the Ericsson Private 5G Compact A2415 to function properly. Ericsson does not sell or support any external antennas. The antennas listed below are compatible with the A2415 and may be ordered at the same time with the CAP. If ordered in this way, the antennas are shipped and supported by a third party. Additional compatible antennas may be available from other vendors.

DESCRIPTIONKP PERFORMANCE PART NUMBER
KP Performance Antennas: 33 degree sector antenna, 18.8 dBi, 2 port, ±45 slantKP-3DP33S-45
KP Performance Antennas: 65 degree sector antenna, 18.1 dBi, 2 port, ±45 slantKPP-3DP65S-45
KP Performance Antennas: 65 degree sector antenna, 18.1 dBi, 4 port, ±45 slantKPP-3SX4-65
KP Performance Antennas: 90 degree sector antenna, 16.7 dBi, 2 port, dual pol. ±45 slantKPPA-3GHZDP90S-45
KP Performance Antennas: 90 degree sector antenna, 17 dBi, 4 port, 45 slant polarizedKP-3SX4-90-V2
KP Performance Antennas: 120 degree sector antenna, 14.5 dBi, 2 port, ±45 slantKP-3DP120S-45
KP Performance Antennas: Omni antenna, 8.5 dBi, 4 port, ±45 slant polarizationKP-3QOMNI-8
For detailed product or performance information for these antennas, see https://www.kpperformance.com/.

Learn more at cradlepoint.com/netcloud-private-networks
