Discontinued

Data sheet

IBR200 Series Router

2026-03-17

Ericsson NetCloud Service for IoT with the IBR200 Series Router is a purpose-built, IoT networking solution with industry-leading features. With its compact size, external cellular and Wi-Fi antennas, and the capability to operate in a wide temperature range, the Ericsson Cradlepoint IBR200 router is ideal for use in IoT applications including plant and machinery controls, surveillance cameras, digital signs, kiosks, and ATMs.



Ideal for Cellular IoT Connectivity



The IBR200 provides connectivity options including Cat 1 LTE modem, Ethernet, Wi-Fi, GPIO ports, and passive GPS. It provides a semi-ruggedized enterprise class networking platform that can be confidently deployed in diverse implementations such as smart cities, manufacturing, and other IoT scenarios requiring robust connectivity. The IBR200 accommodates a wide range of environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.



Robust Cloud Managed IoT Solution



For organizations requiring robust connectivity for IoT networks — with installed routers numbering from hundreds to many thousands — Ericsson NetCloud Service for IoT with the IBR200 router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and out-of-band management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Ericsson NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.

Product PageNetCloud ServicesQuick Start Guide

Ericsson NetCloud Service provides powerful centralized management for every Ericsson Cradlepoint cellular-enabled router, including the IBR200. NetCloud allows customers to build and manage wireless WANs with complete lifecycle management, zero-touch deployment, robust security, and traffic management for optimal application performance and reliability. The cloud capabilities include group policy definition, reports, troubleshooting, and visual analytics dashboards. With a continuous subscription to NetCloud, Ericsson Cradlepoint routers maintain their limited lifetime warranty, access to online training, live and online support, and software and firmware updates.

Advanced Software Lifecycle Management

NetCloud improves the typical software lifecycle management process. New features are continuously delivered to the Ericsson NetCloud Service and available for the router without interrupting network performance. Software versions are tracked for every endpoint, with the latest version just a click away. Straightforward subscription and license management is provided to keep the network running without interruption.

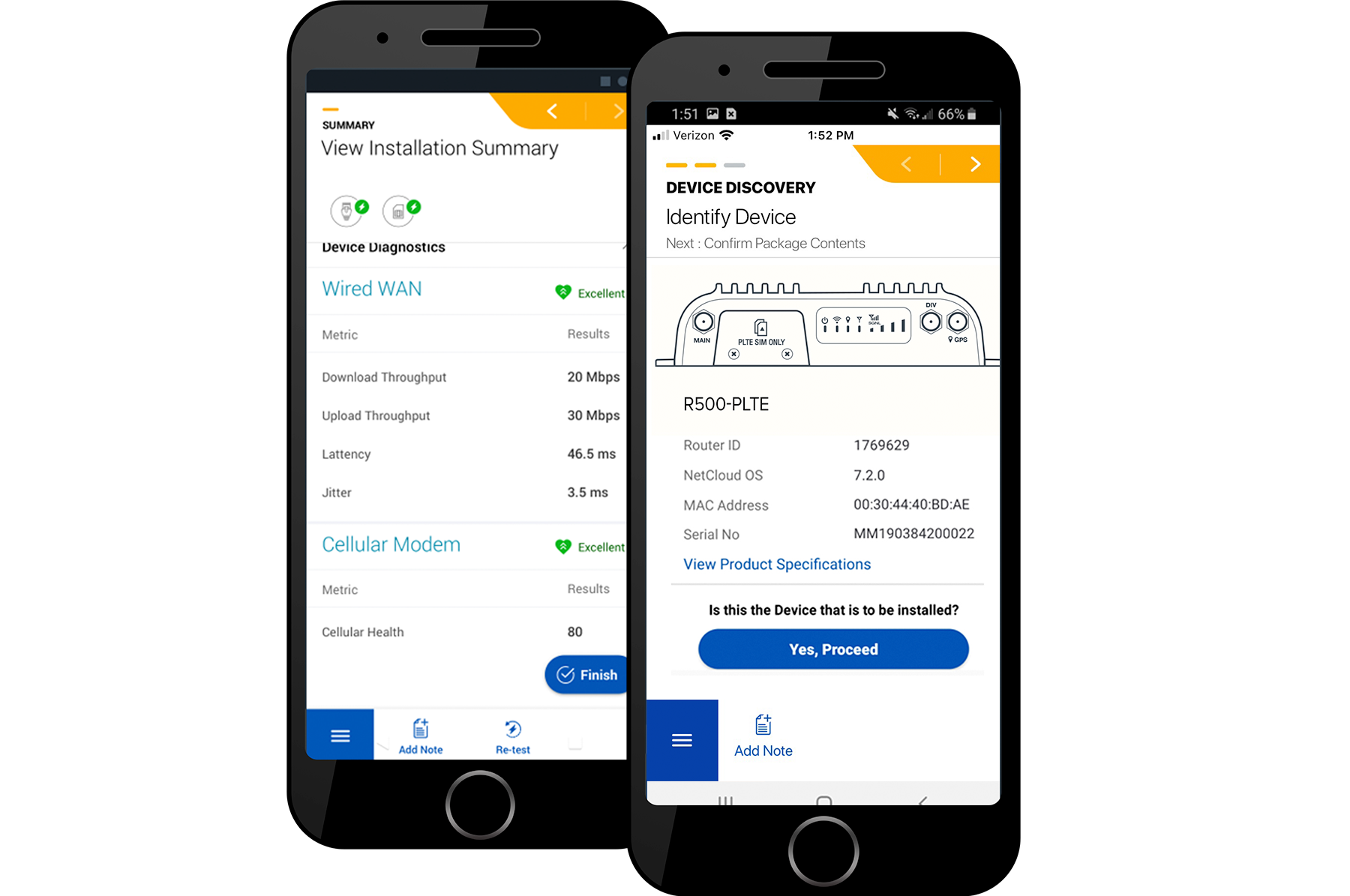

Cradlepoint Verify™ Mobile Application

Ericsson NetCloud Verify is a mobile application that simplifies and customizes steps to install the Ericsson Cradlepoint IBR200 router. Upon a verified installation, users receive a detailed report that includes installation pictures, speed test results, and modem health metrics.

Connection Manager

Connection Manager provides the ability to manage all WAN connection types including wireless, Wi-Fi-as-WAN, and wired, from a single software-defined policy. Our proprietary modem software ensures users establish Wireless WAN connectivity faster while maintaining the highest level of resiliency.

Cloud Services

NetCloud Manager delivers zero-touch deployment with the ability to define and deliver policy across entire groups of endpoints. Users can gain insights and analytics required for rapid troubleshooting and diagnostic workflows. Location services provide last known map location and geofence alerting for loss prevention and physical security.

The following features are delivered through the hardware.

INTERFACES
Modem:

Embedded 10M modem

  • 2 x SMA Cellular Antenna Connectors
Ethernet:
  • 1 x FE RJ45
  • Wi-Fi Alliance Certified
Expansion/ Console:
  • Power with 2 x GPIO (one input, one output)
  • 1 x USB 2.0 Type A (output: 5 V, 500 mA, 2.5 W)
Wi-Fi:

Single radio, single band (2.4 GHz)

  • 1x1 802.11b/g/n Wi-Fi 4
  • 72 Mbps (2.4 GHz)
  • External 1x1 antenna
  • Two (2) Wi-Fi SSIDs
  • WPA/WPA2 Persona, WPA2 Enterprise, Open
GNSS/GPS:
  • North America: Passive GNSS
  • Europe, Asia-Pacific: N/A
ENVIRONMENTAL
Temperature:Operating: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity:
  • Operating: 5% to 95%
  • Storage: 5% to 95%
Ingress Protection:N/A
POWER
Power Required:

One of the following:

  • 12 VDC conditioned steady state input (no voltage tolerance)
  • External DC power supply, 100-240 VAC input. 12 VDC 1A output (included)
Consumption:
  • Idle: 2.7 W (1.8 W with Wi-Fi off)
  • Typical: 3.6 W (2.8 W with Wi-Fi off)
  • Heavy usage: 5.8 W
PHYSICAL

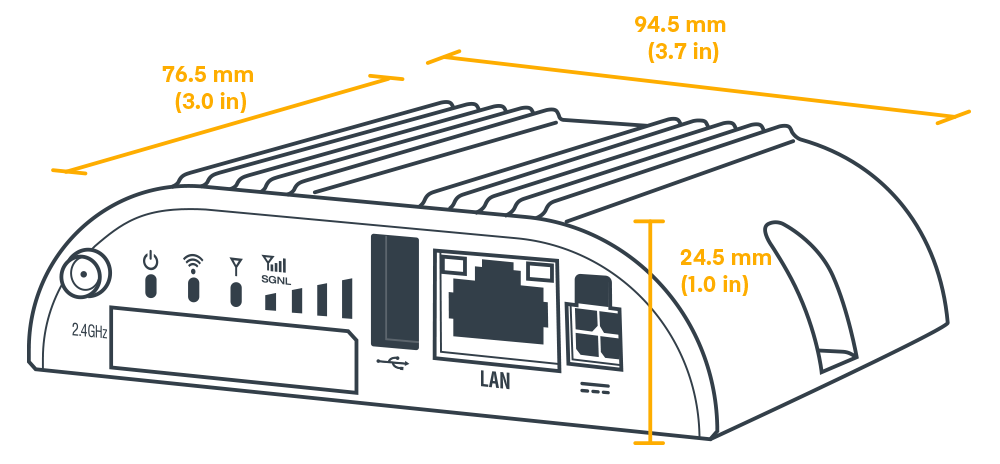

Size:76.5 × 94.5 × 24.5 mm (3.0 × 3.7 × 1.0 in)
Weight:175 g (6 oz)
RELIABILITY
Calculated MTBF:
  • IBR200-10M: 827, 015 hours (Telcordia SR332 at 25 °C)
  • IBR200-10M-B: 821,192 hours (Telcordia SR332 at 25 °C)
  • IBR200-10M-C: 1,077,280 hours (Telcordia SR332 at 25 °C)
CERTIFICATIONS
Safety:
  • UL/cUL
  • CB Scheme
  • EN 60950-1
  • EN 62368-1
Substance Compliance:
  • WEEE
  • RoHS
  • RoHS-2
  • California Prop 65
CLOUD SERVICES
Service Plans:NetCloud Service for IoT Gateway
Service Add-Ons:NetCloud Exchange, NetCloud Advanced
Support:NetCloud Packages include support for the full subscription term.
Warranty:All Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active NetCloud Service Plan.
Device Management:NetCloud Manager for the full subscription term.
Software Updates:NetCloud Manager for the full subscription term.
WI-FI POWER
FCC:2402–2483.5 MHz (2.4 GHz band): 25.3 dBm conducted
Rest of World:2402–2483.5 MHz (2.4 GHz band): 14.99 dBm conducted
PERFORMANCE
Stateful Firewall:60 Mbps
Point-to-Point IPsec VPN:10 Mbps
Concurrent VPN Tunnels:5
Concurrent Sessions (TCP):16,000
Typical Client Count:5
Layer 2 / Layer 3 VLANs:Up to 64
LEDS
 Refer to the IBR200 Quick Start Guide.
Performance testing conducted based on requirements as defined in RFC2544 using fixed-frame 1518 byte packets. Throughput results reflect uni-directional UDP traffic with less than 1% packet loss as tested with wired connections.

Results do not reflect performance of the cellular wireless operator networks.

SPECIFICATION

10M (VERIZON)

10M-B (AT&T, T-MOBILE)

10M-C (SPRINT)

Technology:

Cat 1 LTE (3GPP Rel.10)

  • Single SIM slot, 2FF form factor

Cat 1 LTE (3GPP Rel.10)

  • Single SIM slot, 2FF form factor

Cat 1 LTE (3GPP Rel.10)

  • Single SIM slot, 2FF form factor

3G:

N/A

WCDMA/UMTS/HSPA+

N/A

Carrier Aggregation:

N/A

N/A

N/A

Peak Downlink Rates (LTE):

10 Mbps

10 Mbps

10 Mbps

Peak Uplink Rates (LTE):

5 Mbps

5 Mbps

5 Mbps

MIMO:

N/A

N/A

N/A

QAM:

Up to 16

Up to 16

Up to 16

4G/LTE Bands:

LTE FDD:

  • B4, B13

LTE FDD:

  • B2, B4, B5, B12

LTE FDD:

  • B2, B4, B5, B12, B25, B26

3G Bands:

N/A

2, 4, 5

N/A

Power:

LTE only: 23 dBm ± 1 (typical conducted)

  • LTE only: 23 dBm ± 1 (typical conducted)
  • HSPA+: 23 dBm ± 1 (typical conducted)

LTE only; 23 dBm ± 1 (typical conducted)

Antennas:

SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)

SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)

SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)

GNSS/GPS:

Passive GNSS

  • Multiplex on AUX antenna port

Passive GNSS

  • Multiplex on AUX antenna port

N/A

SMS:

Yes

Yes

Yes

Regulatory:

  • FCC (U.S.)
  • UL (U.S.)
  • FCC (U.S.)
  • UL (U.S.)
  • IC (Canada)
  • FCC (U.S.)
  • UL (U.S.)

Network Operator Standards:

PTCRB (U.S., Canada)

PTCRB (U.S., Canada)

PTCRB (U.S., Canada)

Network Operator
Certifications†:		VerizonAT&TSprint

SPECIFICATION

10M-D (EUROPE)

10M-E (ASIA-PACIFIC)

Technology:

Cat 1 LTE (3GPP Rel.10)

  • Single SIM slot, 2FF form factor

Cat 1 LTE (3GPP Rel.10)

  • Single SIM slot, 2FF form factor

3G:

WCDMA/UMTS/HSPA+

WCDMA/UMTS/HSPA+

Carrier Aggregation:

N/A

N/A

Peak Downlink Rates (LTE):

10 Mbps

10 Mbps

Peak Uplink Rates (LTE):

5 Mbps

5 Mbps

MIMO:

N/A

N/A

QAM:

Up to 16

Up to 16

4G/LTE Bands:

LTE FDD:

  • B1, B3, B5, B7, B8, B20

LTE FDD:

  • B1, B3, B5, B7, B28

3G Bands:

1, 5, 81, 5

GSM Bands:

B3, B8

N/A

Power:

  • LTE: 23 dBm ± 1 (typical conducted)
  • HSPA+: 23 dBm ± 1 (typical conducted)
  • GSM 850 MHz: 33 dBm ± 2 dB (typical conducted)
  • GSM 1800 MHz: 30 dBm ± 2 dB (typical conducted)
  • LTE: 23 dBm ± 1 (typical conducted)
  • HSPA+: 23 dBm ± 1 (typical conducted)

Antennas:

SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)

SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)

GNSS/GPS:

N/A

N/A

SMS:

Yes

Yes

Regulatory:

CE (EU)

RCM (AU/NZ)

Network Operator Standards:

GCF (Worldwide)

GCF (Worldwide)

Network Operator Certifications:

See note†

See note†

†Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications, to operate on their network. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.
† Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications, to operate on their network. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.

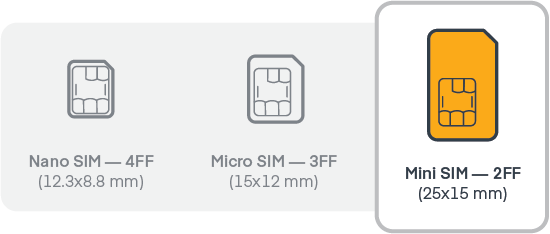

SIM Card Info

NetCloud IoT Gateway Essentials packages and plans contain all the features and capabilities required for a broad range of mobile or in-vehicle applications. Essentials Packages include 24x7 support (phone support: 24 hour weekdays with emergency response on weekends, web: 24x7, chat: 24x5) and a limited lifetime warranty.

For additional capabilities, a NetCloud IoT Advanced Plan can be added to the NetCloud IoT Gateway Essentials package at any time.

See additional details of what is included in the Essential and Advanced NetCloud software: /products/netcloud/netcloud-service/

NetCloud Packages for the IBR200 Series Router

REGIONMODEMPACKAGE PLANPART NUMBER
North America:
U.S., Canada, Mexico
  • 10M for Verizon
  • 10M for AT&T and generic
  • 10M for Sprint
IoT Gateway Essentials

TBy-020010M-VNN

TBy-020010M-ANN

TBy-020010M-SNN

United States Federal Government:
  • 10 Mbps with Wi-Fi for Verizon
  • 10 Mbps with Wi-Fi for AT&T and generic
TAA Compliant NC IoT Gateway Essentials

TAA-TBy-020010M-VNN

TAA-TBy-020010M-ANN

Europe & South Africa:10MIoT Gateway EssentialsTBy-020010M-EWM
Asia-Pacific:
Australia, New Zealand,
Singapore, and Malasia		10MIoT Gateway EssentialsTBy-020010M-PWM
All Regions:
  • Advanced
  • Essentials Renewal
  • Advanced Renewal

TBy-NCADV

TBy-NCESS-R

TBy-NCADV-R

y = 3 or 5 years

INCLUDEDPART NUMBER

One of the following power supplies:

  • Power Supply, 12V Small 2x2 1.5M (North America Type A)
  • Power Supply, 12V Small 2x2 1.5M (North America-United Kingdom-Europe-Australia Types A-G-C-I)



170716-000



170717-000

Cellular Antenna, Charcoal, 600 MHz – 6 GHz, SMA (Qty 2)170801-000
Wi-Fi Antenna, Charcoal, Dual-Band 2.4/5 GHz, RPSMA (Qty 1)170836-000
OPTIONALPART NUMBER
GPIO Cable, Small 2x2 Black 3M 22 AWG170585-001
DIN Rail Mounting Bracket170656-002
Magnetic Mount Kit170718-000
Rail Safe GPIO Cable, Small 2x2, Black, 3 meters, 20 AWG170871-000
Small 2x2 Power to Barrel Adapter, 152 mm170665-000
UNITED STATES FEDERAL GOVERNMENTPART NUMBER
GPIO Cable, Small 2x2, Black, 3 meters, 22 AWGTAA-170585-001
DIN Rail Mounting BrackeTAA-170656-002
Small 2x2 Power to Barrel Adapter, 152 mmTAA-170665-000
Power Supply, 12 V, Small 2x2, 1.5 meters (North America Type A)TAA-170716-000
Power Supply, 12 V, Small 2x2, 1.5 meters (North America-United Kingdom-Europe-Australia Types A-G-C-I)TAA-170717-000
Magnetic Mount KitTAA-170718-000
Cellular Antenna, Charcoal, 600 MHz - 6 GHz, SMA, 180 mmTAA-170801-000

The Ericsson Cradlepoint IBR200 router is only sold as a component of Ericsson NetCloud IoT Gateway Essentials Packages.

  • Ericsson NetCloud packages include support for the full subscription term.
  • All Ericsson Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active Ericsson NetCloud Service plan.

Find the most up-to-date information at cradlepoint.com/ibr200
