Discontinued

Data sheet

IBR600C Series Router

2024-08-16

The Ericsson Cradlepoint IBR600C router for IoT networks is a semi-ruggedized, cloud-managed LTE router, built for IoT and M2M applications. They provide a resilient, LTE connection ideal for use in high-availability, portable, or fixed uses. The IBR600C router is available with IoT NetCloud Service Plans, which provide features optimized for each unique deployment.



Semi-Ruggedized IoT Solution



When coupled with the NetCloud IoT service plan, the IBR600C router provides a compact semi-ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. It is ideal for use in high-availability portable or fixed applications such as surveillance cameras, digital signs, oil and gas monitoring, and parallel networking. With an extensive list of features, it can be confidently deployed in the field, in buildings, or in embedded systems to deliver complete visibility, security, and control of connected devices anywhere.



Robust Cloud Managed IoT Solution



For organizations requiring robust connectivity for IoT networks — with installed routers numbering from hundreds to many thousands — Ericsson’s NetCloud Service for IoT with the IBR600C router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and out-of-band management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Ericsson Cradlepoint NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.



Product PageNetCloud ServiceQuick Start Guide

Ericsson NetCloud Service for the IBR600C router includes the appropriate router software with powerful cloud management features for managing IoT at scale. The NetCloud Service includes cloud-based management for optimizing routing, VPN, SD-WAN, and security capabilities. The cloud capabilities include defining and applying policies, at-a-glance status insights, reports, troubleshooting, and analytics dashboards. The service includes a warranty for as long as an active IoT Essentials or Essentials + Advanced subscription on the router, online training, live and online support, and all software and firmware updates.

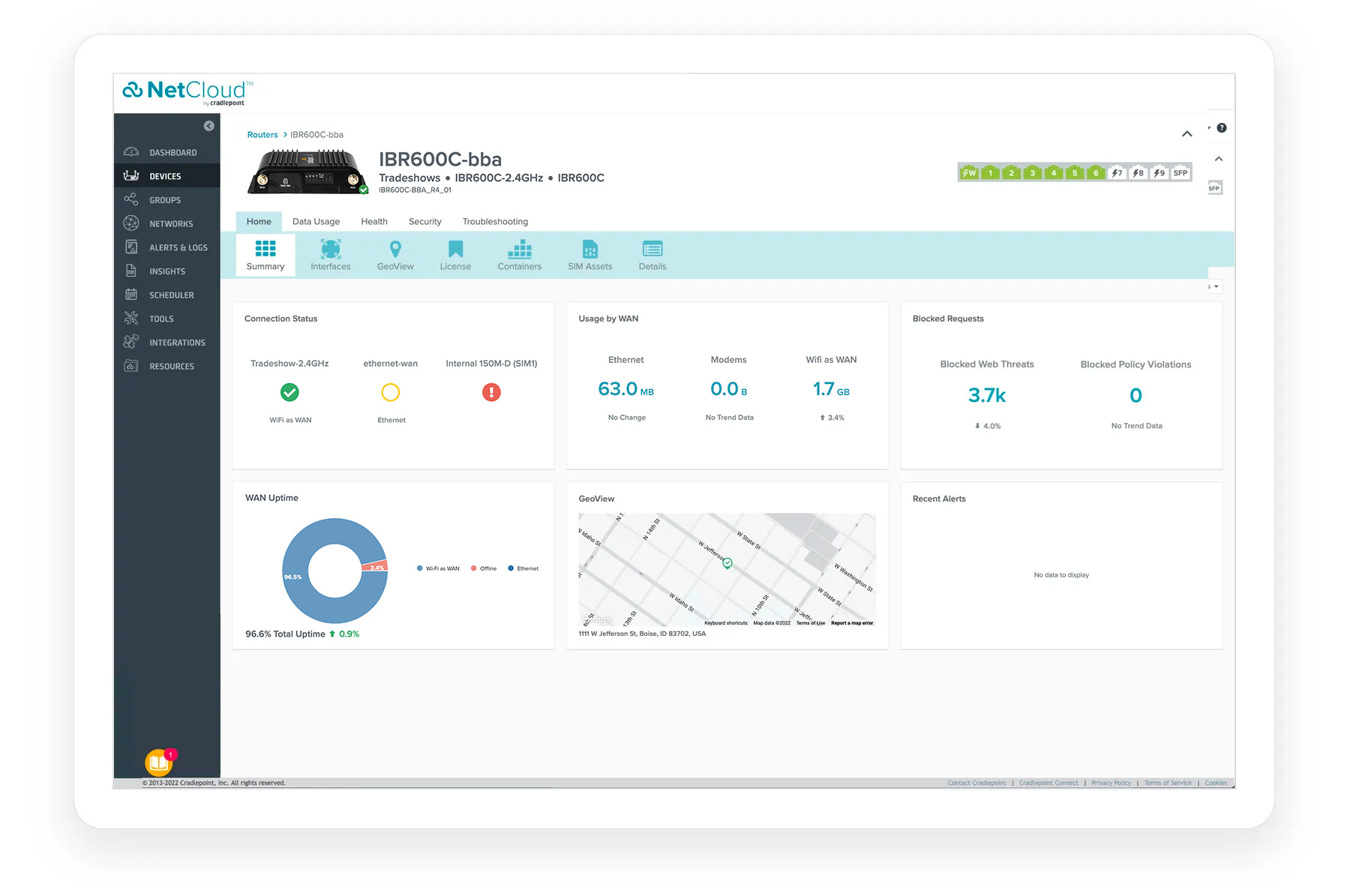

Router Services

Next generation hardware provides local processing power to handle demanding, router-delivered services, such as support for VPN tunneling encryption including DMVPN, IPsec, GRE, and other tunneling technologies.

Security Services

NetCloud Service includes security features and options to optimize the IBR600C router to meet the evolving security needs of IoT. The service includes a stateful zone-based firewall, an authenticated wireless connection that is fully isolated from the surrounding networks, and the ability to add content filtering with Zscaler.

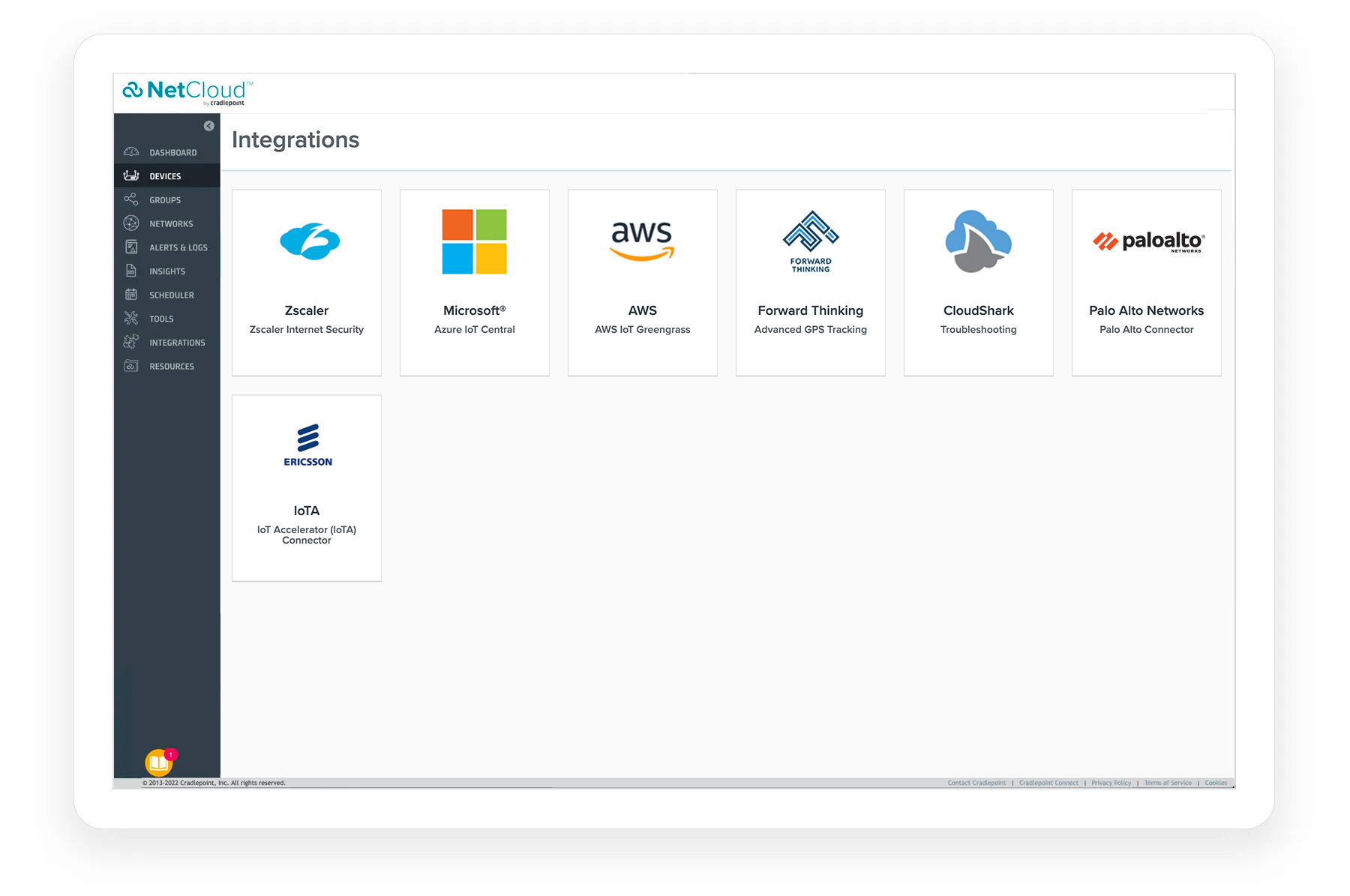

Extensibility and Integrations

NetCloud Service and the IBR600C router can access network data that third-party applications need to provide higher levels of insights and control. Leverage pre-built connections to partner applications or create custom connections across a variety of use cases using the NetCloud SDK or NetCloud API.

Cloud Services

NetCloud Manager delivers true, zero-touch deployment with the ability to define and deliver policy across entire groups of endpoints. Users can create a cloud-orchestrated hub and spoke VPN network and gain insights and analytics required for rapid troubleshooting and diagnostic workflows.

The following features are delivered through the hardware.

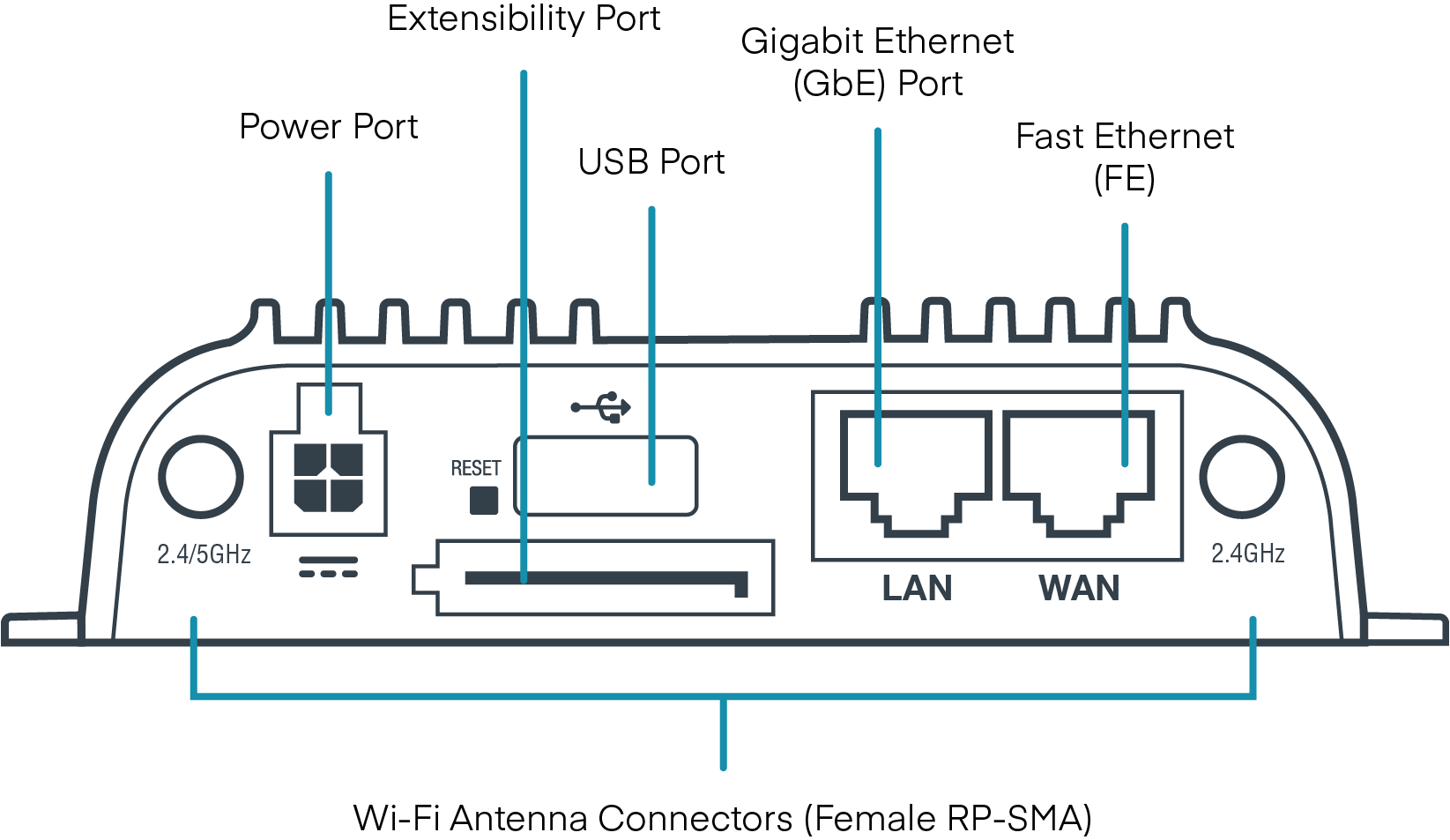

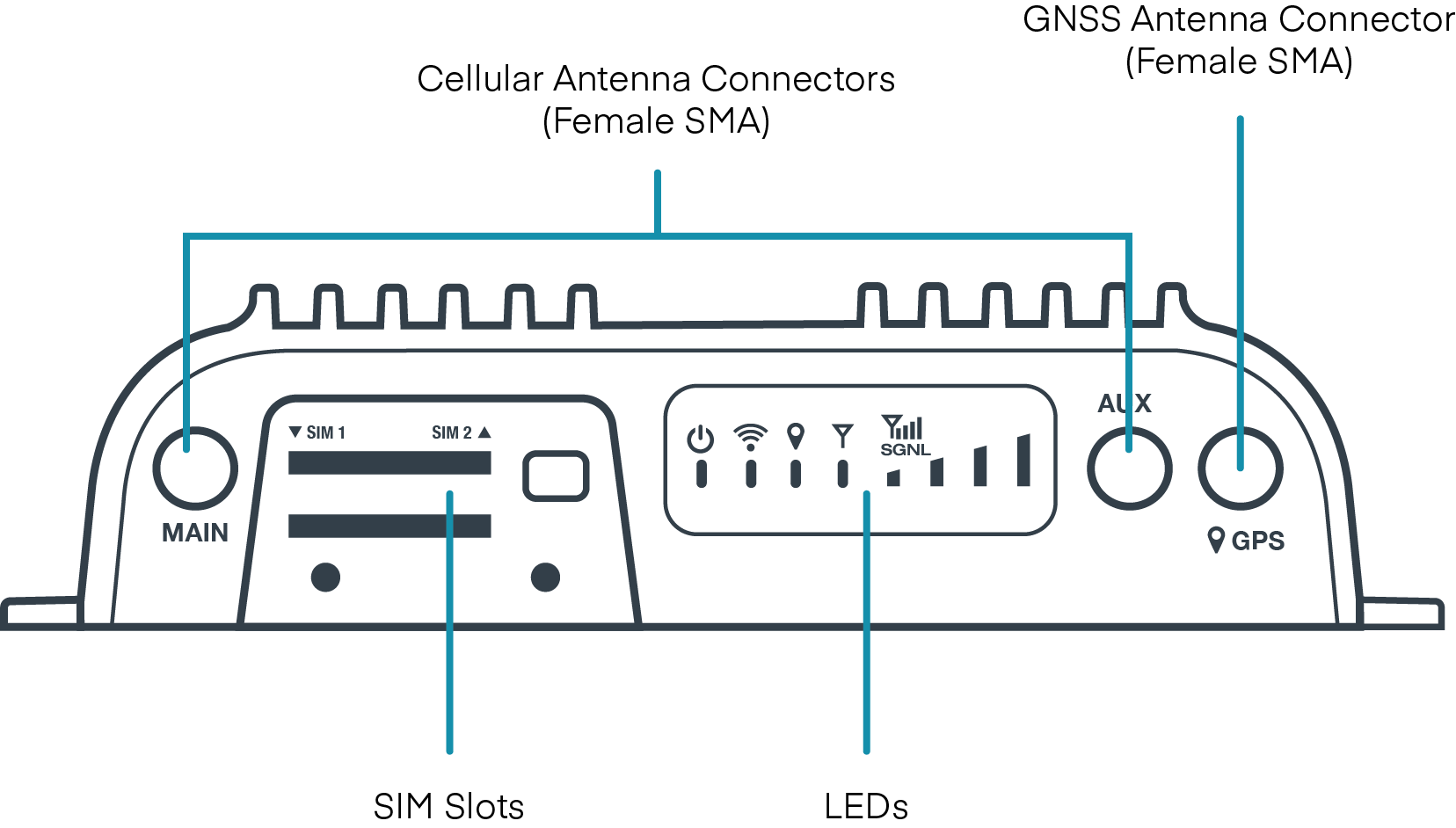

INTERFACES



Modem:

  • Embedded 150M modem with 2 x SMA cellular antenna connectors
  • Optional dual modem (requires the the COR Extensibility Dock) with Modular MC400 Modem

Ethernet:

  • 1 x GbE (LAN/WAN switchable)
  • 1 x FE (LAN/WAN switchable)

Wi-Fi:

Single-radio, single-band (2.4 GHz)

  • 2x2 MIMO 802.11b/g/n Wi-Fi 4
  • 300 Mbps (2.4 GHz)
  • Two (2) Wi-Fi SSIDs
  • WPA/WPA2/WPA3 Personal, WPA2/ WPA3 Enterprise, Open
  • Wi-Fi Alliance Certified

Expansion:

1 x USB 2.0 Type A (output: 5V, 500mA, 2.5W)



1 x Extensibility Port

  • Extensibility Dock
  • 9-Wire Power and GPIO Cable
  • Serial Port Adapter

GNSS/GPS:

1 x SMA GNSS antenna connector

ENVIRONMENTAL



Temperature:

  • Operating: -20 °C to 60 °C (-4 °F to 140 °F)
  • Storage: -20 °C to 70 °C (-4 °F to 158 °F)

Humidity:

  • Operating: 5% to 95%
  • Storage: 5% to 95%

POWER



Required:

One of the following:

  • 9-33 VDC steady state input
  • External DC power supply, 100-240 VAC input, 12 VDC 3A output (included)

Features:

  • Reverse polarity and transient voltage protection (ISO 7637-2)
  • Ignition sensing (automatic ON and time-delay OFF)

Consumption:

  • Idle: 4 W
  • Wi-Fi TX/RX: 9 W
  • LTE TX/RX: 6.25 W

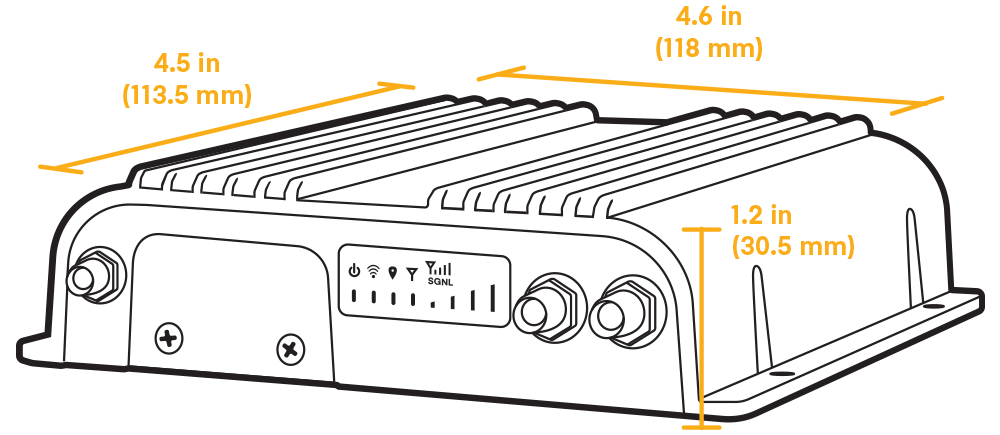

PHYSICAL



Size:

118 x 113.5 x 29.3 mm (4.6 x 4.5 x 1.2 in)

Weight:

400 g (14 oz)

CERTIFICATIONS



Safety:

  • UL/cUL
  • CB Scheme
  • EN 60950-1
  • EN 62368-1
  • MIL-STD 810G
  • SAE J1455

Materials:

  • WEEE
  • RoHS
  • REACH
  • California Prop 65

RELIABILITY



Calculated MTBF:

892,499 hours (Telcordia SR332 at 25 °C)

WI-FI POWER



FCC:

2.4 GHz band: 28.1 dBm Conducted

Canada:

2.4 GHz band: 28.1 dBm Conducted

Rest of World:

  • 2.4 GHz band: 15.44 dBm Conducted
  • 2.4 GHz band: 20 dBm EIRP

PERFORMANCE


Stateful Firewall:

75 Mbps

Point-to-Point IPsec VPN:

10 Mbps

Concurrent VPN Tunnels:

5

Concurrent Sessions (TCP):

16,000

Typical Client Count:

5

Layer 2 / Layer 3 VLANs:

Up to 64

LEDs




Refer to the IBR600C Series IoT Router Quick Start Guide.

Performance testing conducted based on requirements as defined in RFC2544 using fixed-frame 1518-byte packets. Throughput results reflect uni-directional UDP traffic with less than 1% packet loss as tested with wired connections. Results do not reflect performance of the cellular wireless operator networks.

SPECIFICATION

150M-D (NORTH AMERICA)

150M-B (EUROPE)

150M-C (APAC)

Technology:

LTE Cat 4 (3GPP Rel. 11), DC-HSPA+

  • Dual SIM slots, 2FF form factor
  • SIM-based auto-carrier selection

Cat 4 LTE (3GPP Rel. 11), DC-HSPA+

  • Dual SIM slots, 2FF form factor
  • SIM-based auto-carrier selection

LTE Cat 4 (3GPP release 11), DC-HSPA+

  • Dual SIM slots, 2FF form factor
  • SIM based auto carrier select

Fallback:

WCDMA/UMTS/HSPA+

WCDMA/UMTS/HSPA+

WCDMA/UMTS/HSPA+

Carrier Aggregation:

N/A

N/A

N/A

Peak Downlink Rates:

  • LTE: 150 Mbps
  • WCDMA: 42.2 Mbps
  • LTE: 150 Mbps
  • WCDMA: 42.2 Mbps
  • LTE: 150 Mbps
  • WCDMA: 42.2 Mbps

Peak Uplink Rates:

  • LTE 50 Mbps
  • WCDMA: 5.76 Mbps
  • LTE 50 Mbps
  • WCDMA: 5.76 Mbps
  • LTE 50 Mbps
  • WCDMA: 5.76 Mbps

MIMO:

2x2 MIMO

2x2 MIMO

2x2 MIMO

QAM:

Up to 16

Up to 16

Up to 16

LTE Bands:

LTE FDD

  • B2, B4, B5, B12, B13, B14, B66, B71

LTE TDD

  • B38, B40, B41

LTE FDD

  • B1, B3, B5, B7, B8, B20

LTE FDD

  • B1, B3, B5, B7, B28

WCDMA Bands:

B2, B4, B5

LTE FDD

  • B1, B5, B8

LTE FDD

  • B1, B5

Power:

LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)

LTE 23 dBm ± 1; HSPA+ 23 dBm ± 1 (typical conducted)

LTE 23 dBm ± 1; HSPA+ 23 dBm ± 1 (typical conducted)

Antennas:

SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)

SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)

SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)

GNSS/GPS:

Passive GNSS

  • GPS
  • GLONASS
  • BeiDou
  • Galileo

Passive GNSS

  • GPS
  • GLONASS
  • BeiDou
  • Galileo

Passive GNSS

  • GPS
  • GLONASS
  • BeiDou
  • Galileo

SMS:

Yes

Yes

Yes

Regulatory:

  • FCC (U.S.)
  • IC (Canada)

CE (European Union)

RCM (AU/NZ)

Network Operator Standards:

PTCRB (U.S., Canada)

GCF (Worldwide)

GCF (Worldwide)

Network Operator Certifications†:
  • AT&T
  • Verizon
See noteSee note

Public Safety Network Certifications:

  • FirstNet Trusted™
  • Verizon Frontline

N/A

N/A

Private Cellular Network:

N/A

N/A

N/A

†Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.

SIM Card Info

NetCloud IoT Essentials packages and plans contain all the features and capabilities required for a broad range of IoT applications. Essentials Packages include 24x7 support (phone support: 24 hour weekdays with emergency response on weekends, web: 24x7, chat: 24x5) and a limited lifetime warranty.

For additional capabilities, a NetCloud IoT Advanced Plan can be added to the NetCloud Essentials package at any time.

NetCloud IoT Connectivity packages and plans contain the features and capabilities required for a range of entry-level IoT applications. IoT Connectivity Packages include access to the technical documentation portal, on-demand Cradlepoint University training, and a one-year warranty.

For additional capabilities, a NetCloud IoT Essentials Add-on can be added to the NetCloud IoT Connectivity Package at any time.

See additional details of what is included in the Essential and Advanced NetCloud software: cradlepoint.com/netcloud-service

NetCloud IoT Packages for the IBR600C Series Router

REGION

MODEM

IOT PACKAGE PLAN

PART NUMBER

North America:
U.S. & Canada

Cat 4 (150 Mbps) with Wi-Fi

Essentials



Essentials + Advanced



IoT Connectivity

TBy-600C150M-NNN



TBAy-600C150M-NN



TBFy-600C150M-NN



Cat 4 (150 Mbps) without Wi-Fi

Essentials



Essentials + Advanced

TBy-650C150M-N0N



TBAy-650C150M-NN

U.S. Federal Government

TAA Compliant NC — Cat 4 (150 Mbps) with Wi-Fi

Essentials + Advanced

TAA-TBAy-600C150M-NN

Worldwide: European Union, South Africa & United Kingdom

Cat 4 (150 Mbps) with Wi-Fi

Essentials



Essentials + Advanced



IoT Connectivity

TBy-600C150M-EWM



TBAy-600C150M-EM



TBFy-600C150M-EM

Asia Pacific: Australia, New Zealand & Singapore

Cat 4 (150 Mbps) with Wi-Fi

Essentials



Essentials + Advanced



IoT Connectivity

TBy-600C150M-PWM



TBAy-600C150M-PM



TBFy-600C150M-PM

All Regions



Advanced



Essentials Add-on for IoT Connectivity



Renewal Essentials



Renewal Advanced



Renewal Essentials + Advanced



Renewal IoT Connectivity



Renewal IoT Connectivity to Essentials Add-on

TBx-NCADV



TBFx-NCCES





TAx-NCESS-R



TBx-NCADV-R



TBAx-NCEA-R



TBFx-NCCONL-R



TBFx-NCCES-R

x = 1, 3, or 5 years
y = 3 or 5 years

INCLUDED

PART NUMBER

One of the following power supplies:

  • Power Supply, 12V Small 2x2 1.5 meters (North America Type A)
  • Power Supply, 12V Small 2x2 1.5 meters (North America-United Kingdom-Europe-Australia Types A-G-C-I)

170716-000



170717-000

Cellular Antenna, 600 MHz - 6 GHz, SMA Black Mini (Qty 2)

170704-002

Wi-Fi Antenna, Charcoal, Dual-Band 2.4/5 GHz, RPSMA (Qty 2)

170836-000

OPTIONAL

PART NUMBER

GPIO Cable, Small, 2x2, Black, 3 meters, 22AWG

170585-001

Power Supply, Vehicle, 12V, 2x2

170635-000

DIN Rail Mounting Bracket

170656-002

GPIO Cable, SATA with Lock, Black, 1.7 meters

170680-001

COR Extensibility Dock

170700-000

COR Extensibility Cable, SATA-DB9, Black, 305 mm

170767-000

Rail Safe GPIO Cable, Small 2x2, Black, 3 meters, 20 AWG

170871-000

LTE Advanced (Cat 6) modem†

MC400LP5

LTE Advanced Pro (1200 Mbps) modem upgrade for Mobile — includes IBR1700 & COR Extensibility Dock doors, no antennas†

MA-MC400-1200M-B

UNITED STATES FEDERAL GOVERNMENT

PART NUMBER

GPIO Cable, Small, 2x2, Black, 3 meters, 22 AWG

TAA-170585-001

Power Supply, Vehicle, 12V, 2x2, 2 meters

TAA-170635-000

DIN Rail Mounting Bracket

TAA-170656-002

GPIO Cable, SATA with Lock, Black, 1.7 meters

TAA-170680-001

COR Extensibility Dock

TAA-170700-000

Power Supply, 12 V, Small 2x2, 1.5 meters (North America Type A)

TAA-170716-000

Power Supply, 12 V Small 2x2, 1.5 meters (North America-United Kingdom-Europe-Australia Types A-G-C-I)

TAA-170717-000

COR Extensibility Cable, SATA-DB9, Black, 305 mm

TAA-170767-000

LTE Advanced Pro (1200 Mbps) modem upgrade for Mobile — includes IBR1700 & COR Extensibility Dock doors, no antennas†

TAA-MA-MC400-1200M-B

†Refer to the Cradlepoint MC400 Modular Modem webpage for more information about modular modems.

The IBR600C router is only sold as a component of NetCloud IoT Connectivity, IoT Essentials or Essentials + Advanced Packages.

  • Only IoT Essentials or Essentials + Advanced Packages include support for the full subscription term.
  • All Ericsson Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active NetCloud IoT Essentials or Essentials + Advanced Service Plan.

Find the most up-to-date information at cradlepoint.com/ibr600c
