Data sheet

Ericsson Cradlepoint MC400

2026-03-24

Ericsson Cradlepoint MC400 modular modems allow Ericsson Cradlepoint MC400-capable branch, mobile, and IoT routers to be easily field upgraded with the most recent industry-leading cellular capabilities. The Ericsson Cradlepoint MC400 modular modems combine enterprise reliability with industry leading performance. Available modems include both LTE Advanced and 5G for fast robust connections.

Product PageNetCloud ServiceQuick Start Guide

The following features are delivered through the hardware.

>
ENVIRONMENTALMC400-1200M-BMC400-5GB
Temperature:
  • Operating: -30 °C to 70 °C (-22 °F to 158 °F)
  • Storage: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating: -30 °C to 70 °C (-22 °F to 158 °F)
  • Storage: -40 °C to 85 °C (-40 °F to 185 °F)
Humidity:
  • Operating: 5% to 95%
  • Storage: 5% to 95%
  • Operating: 5% to 95%
  • Storage: 5% to 95%
POWER
Required:Provided through USB by the hostProvided through USB by the host
PHYSICAL

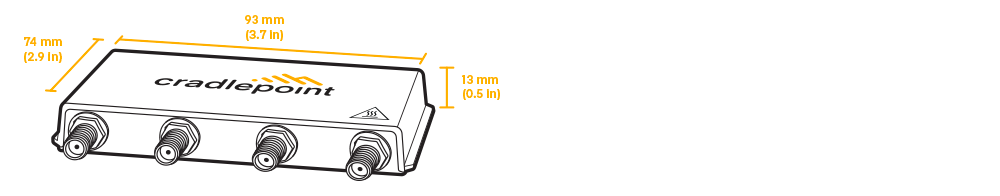

Size:93 x 74 x 13 mm (3.7 x 2.9 x 0.5 in)93 x 74 x 13 mm (3.7 x 2.9 x 0.5 in)
Weight:.104 kg (3.7 oz).104 kg (3.7 oz)
CERTIFICATIONS
Safety:
  • UL/cUL
  • CB Scheme
  • EN 60950-1
  • EN 62368-1
  • UL/cUL
  • CB Scheme
  • EN 62368-1
Substance Compliance:
  • WEEE
  • RoHS
  • REACH
  • California Prop 65
  • WEEE
  • RoHS
  • REACH
  • California Prop 65
Shock/Vibration/Humidity:Compliant with MIL STD 810G and SAEJ1455 when inserted in an Ericsson Cradlepoint IBR1700 router, an Ericsson Cradlepoint COR Extensibility Dock attached to an Ericsson Cradlepoint IBR900 router, or an Ericsson Cradlepoint R1900 router with an Ericsson Cradelpoint RX30-MC managed accessory.Compliant with MIL STD 810G and SAEJ1455 when inserted in an Ericsson Cradlepoint IBR1700 router or an Ericsson Cradlepoint R1900 router with an Ericsson Cradlepoint RX30-MC managed accessory.
COMPATIBILITY
Supported Endpoints:
  • AER1600
  • AER2200
  • CBA850
  • IBR1700
  • IBR900†
  • IBR600C†
  • E300
  • E3000
  • R1900††
  • R500†
  • R920†††
  • AER2200
  • IBR1700
  • E300
  • E3000
  • R1900††
  • R920†††

†Requires an Ericsson Cradlepoint COR Extensibility Dock.
††Requires an Ericsson Cradlepoint RX30-MC managed accessory.
†††Requires an Ericsson Cradlepoint RX20-MC managed accessory.

SPECIFICATIONMC400-1200M-BMC400-5GB
Technology:

Cat 18 LTE Advanced Pro

  • Dual SIM slots, 2FF form factor
  • SIM-based auto-carrier selection
  • 3GPP Release 12

5G FR1 NSA/SA and 4G LTE

  • LTE Advanced Pro Category 20
  • Dual SIM slots, 4FF form factor
  • SIM-based auto-carrier selection
  • 3GPP Release 15
3G:WCDMA/DC-HSPA+WCDMA/DC-HSPA+
Carrier Aggregation:

Up to 5 CA downlink, 2 CA uplink

See Understanding Carrier Aggregation.

LTE + 5G NR ENDC

  • Downlink: 1 CA
  • Uplink: 1 CA

LTE Only

  • Downlink: Up to 7 CA
  • Uplink: Up to 2 CA

See Understanding Carrier Aggregation.

Peak Downlink Rates:
  • LTE: 1.2 Gbps
  • DC-HPSA+: 42.2 Mbps
Up to 4.14 Gbps — based on 20 Layers LTE + TDD (100 MHz BW, 256 QAM, 4X4)
Peak Uplink Rates:
  • LTE: 150 Mbps
  • DC-HPSA+: 5.76 Mbps
Up to 660 Mbps — based on 2 Layers LTE + TDD (100 MHz BW, 256 QAM, SISO)
MIMO:4x4 MIMO4x4 MIMO
Modulation:Up to 256 QAM

5GB FR1

  • Downlink: Up to 256 QAM
  • Uplink: Up to 256 QAM. (Only enabled on particular carrier equipment from 9190 data sheet.)
5G NR Bands:N/A

NSA and SA

  • n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
4G/LTE Bands:

FDD

  • B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)

TDD

  • B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)

FDD

  • B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)

TDD

  • B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
3G Bands:1, 2, 4, 5, 8, 9, 191, 2, 3, 4, 5, 6, 8, 9, 19
Power:LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)

5G NR

  • 5G NR bands: 23 dBm ± 1.5 (typical conducted)

LTE + 5G NR ENDC

  • LTE + 5G NR: 20 dBm ± 1 (typical conducted)

LTE

  • LTE bands: 23 dBm ± 1 (typical conducted)
  • LTE HPUE: 25 dBm ± 1 (B41 standalone mode only)
Antennas:SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 4, included)SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 4, included only with supported Branch routers)
GNSS/GPS:Active GPSPassive GNSS (multiplex with DIV/MIMO2 antenna ports)
SMS:YesYes
Regulatory:
  • FCC (U.S.)
  • IC (Canada)
  • CE (EU)
  • RCM (AU/NZ)
  • FCC (U.S.)
  • IC (Canada)
  • CE (EU)
  • RCM (AU/NZ)
Network Operator Standards:
  • PTCRB (U.S., Canada)
  • GCF (Worldwide)
  • PTCRB (U.S., Canada)
  • GCF (Worldwide)
Network Operator Certifications†:
  • AT&T
  • Verizon
  • AT&T
  • T-Mobile
  • Verizon
Public Safety Network Certifications:
  • FirstNet Capable™
  • Verizon Frontline
  • FirstNet Capable™
  • T-Mobile Connecting Heroes
  • Verizon Frontline
Private Cellular Network:Yes, includes FCC Part 96 (CBRS Band 48)Yes, includes FCC Part 96 (CBRS Band 48)
†Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications. A carrier listed in the approvals section means Ericsson Enterprise Wireless Solutions completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.

The Ericsson Cradlepoint MC400 modular modem is an accessory for Ericsson Cradlepoint routers and adapters that have an expansion slot to accept a modular modem. Activation and use of the MC400 modular modem requires an Ericsson Cradlepoint endpoint that is licensed to an Ericsson NetCloud service plan.

For details on the features available to a licensed Ericsson Cradlepoint router or adapter by service plan, refer to the summary on the NetCloud Serivce webpage and the detail in the NetCloud Service Features document.

NetCloud Packages for the Ericsson Cradlepoint MC400

REGIONMODEMPACKAGE PLANSPART NUMBER
All Regions:
Asia-Pacific, Australia, Canada, European Union, New Zealand, United Kingdom, and United States

Cat 18 (1200 Mbps)

  • Includes 4 Cellular Antennas, White, 700 MHz - 2.7 GHz, SMA, 160 mm
Upgrade for CBA850 LTE Branch AdapterBB-MC400-1200M-B


Cat 18 (1200 Mbps)

  • No antennas
Upgrade for R1900 with RX30-MC, IBR1700, or COR Extensibility DockMA-MC400-1200M-B


Cat 18 (1200 Mbps)

  • Includes 4 Cellular Antennas, Charcoal, 600 MHz - 6 GHz, SMA, 180 mm (Part #: 170801-000)
Upgrade for E300/E3000 Enterprise Branch RoutersBF-MC400-1200M-B


5G

  • Includes 4 Cellular Antennas, Charcoal, 600 MHz - 6 GHz, SMA, 180 mm (Part #: 170801-000)
Upgrade for AER2200 Branch RoutersBA-MC400-5GB


5G

  • No antennas
Upgrade for R920 with RX20-MC, R1900 with RX30-MC or IBR1700 Mobile RoutersMB-MC400-5GB


5G

  • Includes 4 Cellular Antennas, Charcoal, 600 MHz - 6 GHz, SMA, 180 mm (Part #: 170801-000)
Upgrade for E300/E3000 Enterprise Branch RoutersBF-MC400-5GB
United States:
Federal Government

Cat 18 (1200 Mbps)

  • No antennas
Upgrade for R1900 with RX30-MC, IBR1700, or COR Extensibility DockTAA-MA-MC400-1200M-B


Cat 18 (1200 Mbps)

  • Includes 4 Cellular Antennas, Charcoal, 600 MHz - 6 GHz, SMA, 180 mm (Part #: TAA-170801-000)
Upgrade for E300/E3000 Enterprise Branch RoutersTAA-BF-MC400-1200M-B


5G

  • Includes 4 Cellular Antennas, Charcoal, 600 MHz - 6 GHz, SMA, 180 mm (Part #: TAA-170801-000)
Upgrade for AER2200 Branch RoutersTAA-BA-MC400-5GB


5G

  • No antennas
Upgrade for R1900 with RX30-MC or IBR1700 Mobile RoutersTAA-MB-MC400-5GB


5G

  • Includes 4 Cellular Antennas, Charcoal, 600 MHz - 6 GHz, SMA, 180 mm (Part #: TAA-170801-000)
Upgrade for E300/E3000 Enterprise Branch RoutersTAA-BF-MC400-5GB

The Ericsson Cradlepoint MC400 modular modem is only sold as an accessory.

  • All Ericsson Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active Ericsson NetCloud Service plan.

SIM Card Info — MC400-5GB

SIM Card Info — MC400-1200M-B

Find the most up-to-date information at cradlepoint.com/mc400
