Data sheet

R500-PLTE Series Ruggedized Router

2024-08-16

The Ericsson Cradlepoint R500-PLTE router with the Ericsson NetCloud Service for IoT is a purpose-built, low-cost User Equipment (UE) networking solution with industry-leading features for Private Cellular Networks (PCN). It is a compact, ruggedized solution for deployments in manufacturing, distribution, transportation, education, and others taking advantage of the lower fixed operating costs, enhanced data security, and improved network performance a PCN provides.



Ideal for Private Cellular Networks



The R500-PLTE is purpose built for PCN deployments. It is an FCC Part 96 authorized end-user device for Band 48 OnGo CBRS networks providing a competitively priced compact and ruggedized PCN UE solution. The R500-PLTE accommodates a wide range of environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.



Ruggedized IoT Solution



The R500-PLTE includes advanced connectivity options with a Cat 7 LTE-Advanced modem, gigabit Ethernet, Wi-Fi 5, GPIO ports, and GPS. It provides a ruggedized enterprise class networking platform that can be confidently deployed in environments such as smart cities, mining, oil and gas, shipping ports and logistics, as well as education for students and teachers. Combined with NetCloud Service for IoT, the R500-PLTE delivers complete visibility, security, and control together with health and status alerts on security posture, network conditions, and usage for connected devices anywhere.

Product PageNetCloud ServiceQuick Start Guide

Ericsson NetCloud Service provides powerful centralized management for every Ericsson Cradlepoint cellular-enabled router, including the R500-PLTE. NetCloud Service allows customers to build and manage wireless WANs with complete lifecycle management, zero-touch deployment, robust security, and traffic management for optimal application performance and reliability. The cloud capabilities include group policy definition, reports, troubleshooting, and analytics dashboards. The service includes a warranty for as long as the router has an active subscription, online training, live and online support, and software and firmware updates.

Advanced Software Lifecycle Management

NetCloud improves the typical software lifecycle management process. New features are continuously delivered to the NetCloud Service and available for the router without interrupting network performance. Software versions are tracked for every endpoint, with the latest version just a click away. Straightforward subscription and license management is provided to keep the network running without interruption.

Ericsson NetCloud Verify Mobile Application

As an extension to NetCloud, Ericsson NetCloud Verifyy is a mobile application that simplifies setting up Ericsson Cradlepoint endpoints with easy, customized steps specific to the R500 router. Upon a verified installation, users receive a detailed report that includes installation pictures, speed test results, and modem health metrics.

Connection Manager

Connection Manager provides the ability to manage all WAN connection types including wireless, Wi-Fi-as-WAN, and wired, from a single software-defined policy. Our proprietary modem software ensures users establish Wireless WAN connectivity faster while maintaining the highest level of resiliency.

Cloud Services

NetCloud Manager delivers zero-touch deployment with the ability to define and deliver policy across entire groups of endpoints. Users can gain insights and analytics required for rapid troubleshooting and diagnostic workflows. Location services provides last known map location and geofence alerting for loss prevention and physical security.

The following features are delivered through the hardware.

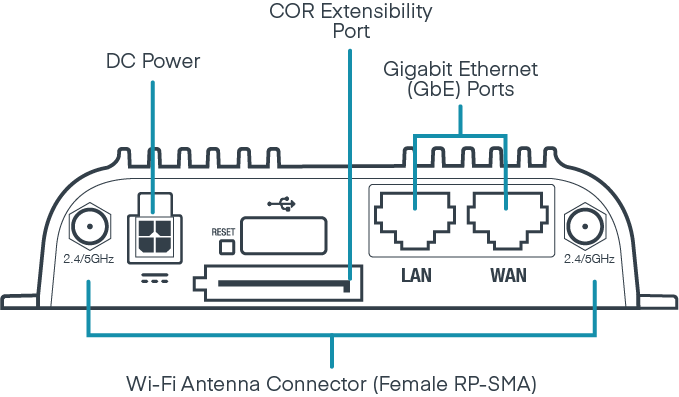

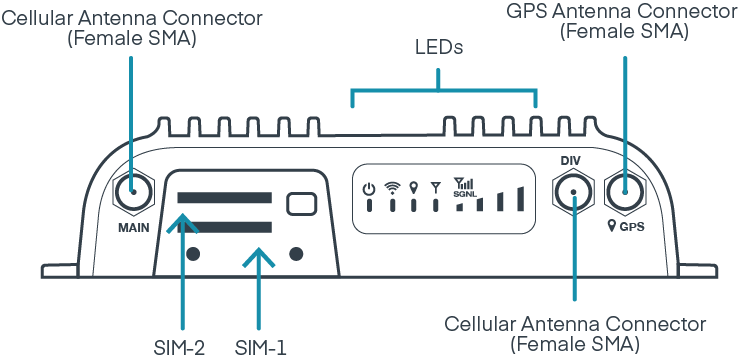

INTERFACES



Modem:

Embedded Category 7 Advanced LTE modem

  • Dual SIM slots, mini 2FF form factor
  • 2 x SMA cellular antenna connectors



Optional dual modem

  • MC400 Modular Modem with optional COR Extensibility Dock

Ethernet:

2 x GbE RJ45 (LAN/WAN switchable)

Wi-Fi:

Dual-band, concurrent operation (2.4 GHz & 5 GHz)

  • 802.11ac Wave 2 with up to 256 QAM
  • 2 x RP-SMA Wi-Fi antenna connectors
  • Modes: WPA/WPA2/WPA3 Personal, WPA2/ WPA3 Enterprise, WEP Auto, Open

Expansion:

  • USB 2.0 Type A (Output: 5 V, 500 mA, 2.5 W)
  • GPIO 2-wire (combined with power cable)
  • COR Extensibility Port
    • COR Extensibility Dock (optional)
    • COR Extensibility 9-Wire GPIO Cable (optional)
    • COR Serial Cable Adapter (optional)

GNSS/GPS:

1 x SMA GNSS antenna connector

ENVIRONMENTAL



Temperature:

  • Operating: -30 °C to 70 °C (-22 °F to 158 °F) with included standard AC power supply
  • Storage: -40 °C to 85 °C (-40 °F to 185 °F)

Humidity (noncondensing):

  • Operating: 5% to 95%
  • Storage: 5% to 95%

Ingress Protection:

IP54 (dust protected and splashing water)

POWER



Required:

DC input steady state voltage range: 9–33 VDC (requires in-line fuse for vehicle installations)

  • For 9–24 VDC installations, use a 3 A fuse
  • For > 24 VDC installations, use a 2.5 A fuse

Features:

  • Reverse polarity & transient voltage protection per ISO 7637-2
  • Ignition sensing (automatic ON & time-delay OFF)

Consumption:

  • Idle: 4 W
  • LTE Tx/Tx: 6.25 W
  • Wi-Fi Tx/Rx: 9 W
  • 12 VDC / 2 A adapter recommended

PHYSICAL



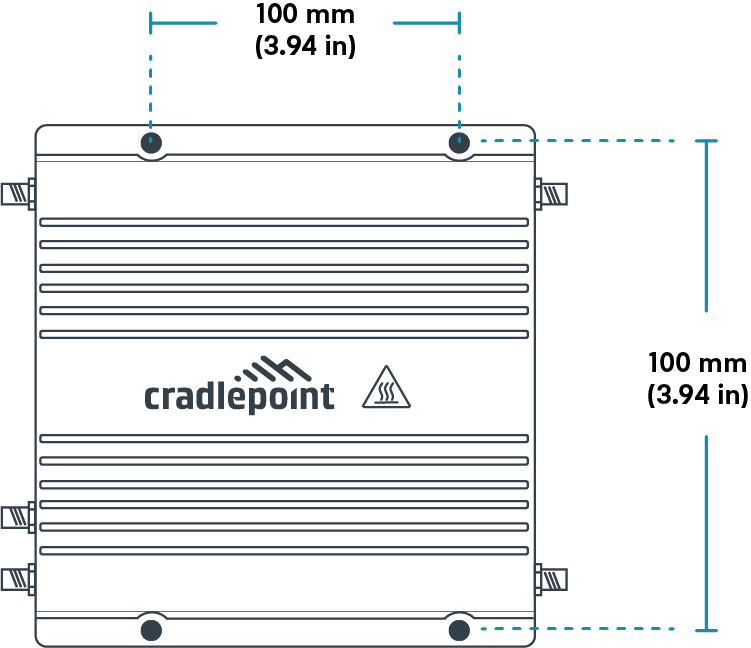

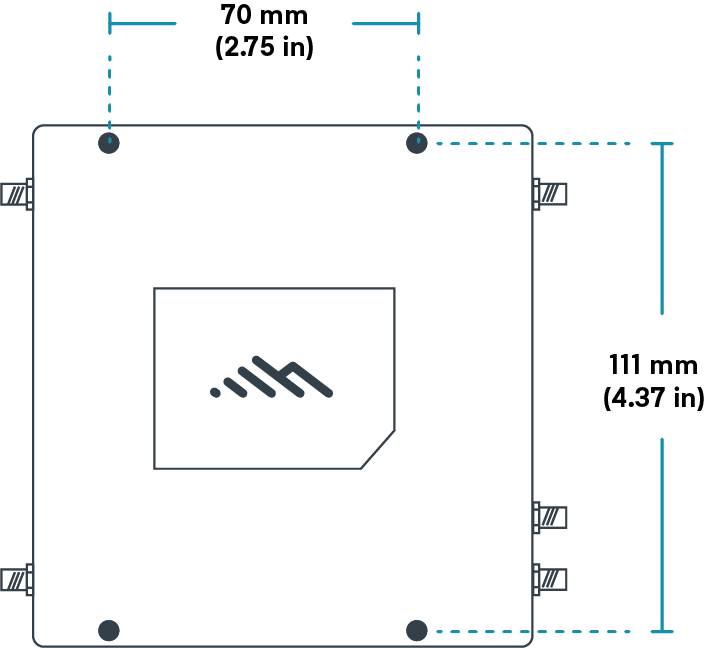

Size:

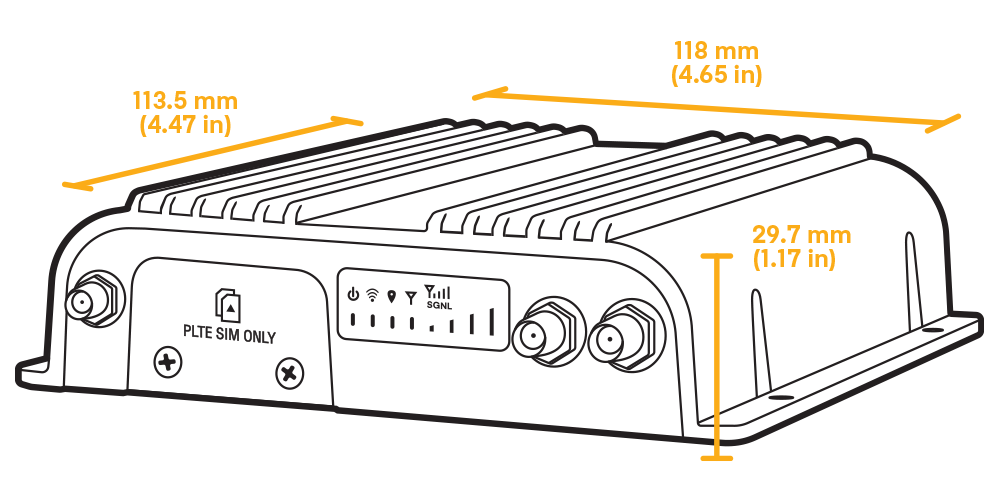

118 x 113.5 x 29.3 mm (4.6 x 4.5 x 1.2 in)

Weight:

.40 kg (14 oz)

RELIABILITY



Calculated MTBF:

1,492,752 hours (Telcordia SR332 at 25 °C)

CERTIFICATIONS



Safety:

  • UL/cUL
  • CB Scheme
  • EN 60950-1
  • EN 62368-1

Materials:

  • WEEE
  • RoHS
  • REACH
  • California Prop 65

Wi-Fi:

Wi-Fi Alliance — 802.11a/b/g/n/ac Wave 2 certified

Shock/Vibration/Humidity:

  • MIL STD 810G
  • SAEJ1455

CLOUD SERVICES



Service Plans:

NetCloud Service for IoT

Service Add-Ons:

NetCloud Exchange, NetCloud Advanced

Support:

NetCloud Packages include support for the full subscription term.

Warranty:

All Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active NetCloud Service Plan.

Device Management:

NetCloud Manager for the full subscription term.

Software Updates:

NetCloud Manager for the full subscription term.

WI-FI POWER:



FCC:

  • 2402–2483.5 MHz: 28.1 dBm EIRP
  • 5150–5250 MHz: 32.9 dBm EIRP
  • 5725–5850 MHz: 32.8 dBm EIRP

PERFORMANCE



Max Router Throughput:

850 Mbps

Point-to-Point IPsec VPN:

30 Mbps

Concurrent VPN Tunnels:

10

Concurrent Sessions (TCP):

16,000

Typical Client Count:

10

Layer 2 / Layer 3 VLANs:

Up to 64

LEDS




Refer to the R500 Series Enterprise Quick Start Guide

Refer to the R500 Series Enterprise Quick Start Guide

SPECIFICATION

Technology:

Cat 7 Advanced LTE (3GPP Rel. 12)

  • Dual SIM slots, mini 2FF form factor
  • Private LTE CBRS SIM cards only

Peak Downlink Rates:

300 Mbps

Peak Uplink Rates:

75 Mbps

MIMO:

2x2 MIMO

QAM:

Up to 64

4G/LTE Bands:

LTE TDD

  • B41†, B42, B43, B48

Power:

LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)

Antennas:

SMA and RP-SMA male plugs, maximum torque not to exceed 4 in-lbs

GNSS/GPS:

Active GNSS

  • GPS, GLONASS, BeiDou, Galileo
  • DC voltage bias supplied (typical 3.1 V)

Regulatory:

FCC Part 96

Private LTE:

Yes, includes FCC Part 96 (CBRS OnGo Band 48)

SIM Card Info

NetCloud IoT Essentials packages and plans contain all the features and capabilities required for a broad range of IoT applications. Essentials Packages include 24x7 support (phone support: 24 hour weekdays with emergency response on weekends, web: 24x7, chat: 24x5) and a limited lifetime warranty.

For additional capabilities, a NetCloud IoT Advanced Plan can be added to the NetCloud IoT Essentials Package at any time.

See additional details of what is included in the Essential and Advanced NetCloud software: cradlepoint.com/netcloud-service

NetCloud Packages for Private Cellular Networks with the R500-PLTE Series Router

REGION

MODEM

IoT PACKAGE PLAN

PART NUMBER

North America:
U.S. & Canada

Cat 7 with Wi-Fi (300 Mbps)

Essentials

TD0y-0500C7C-NN

Cat 7 with Wi-Fi (300 Mbps); includes AC power supply and antennas

Essentials + Advanced

TDAy-0500C7C-NN

Advanced (requires corresponding Essentials packages)

TD0x-NCADV

United States:
Federal Government

Cat 7 with Wi-Fi (300 Mbps); includes AC power supply and antennas

TAA Compliant NC Essentials



TAA Compliant NC Essentials + Advanced

TAA-TD0y-0500C7C-NN



TAA-TDAy-0500C7C-NN

Renewal:

Essentials



Advanced upgrade



Essentials + Advanced upgrade

TD0x-NCESS-R



TD0x-NCADV-R



TDAx-NCEA-R

INCLUDED

PART NUMBER

Power Supply for North America, 12V, 2x2, 2 meters, -20 °C to 60 °C (-4 °F to 140 °F)170864-000

Ruggedized IoT Only:

  • Cellular Antenna, Black Mini, 600 MHz - 6 GHz, SMA, 140 mm (Qty 2)
  • Wi-Fi Antenna, Charcoal, Dual-Band 2.4/5 GHz, RPSMA, 194 mm (Qty 2)



  • 170704-002
  • 170836-000

    • OPTIONAL

    PART NUMBER

    Power Supply for North America, 12 V, 2x2, 2 meters170716-000
    Power Supply, 12 V, Small 2x2 (C7 line cord not include), -30 °C to 70 °C (-22 °F to 158 °F)170869-000
    Power Supply, Vehicle, 12 V, 2x2, 2 meters170635-000
    Small 2x2 Power to Barrel Adapter, 152 mm170665-000
    GPIO Cable, Small 2x2, Black, 3 meters, 22 AWG170585-001
    COR Extensibility Dock†170700-000
    GPIO Cable, SATA with Lock, Black, 1.7 meters, -30 °C to 70 °C (-22 °F to 158 °F)170680-001
    COR Extensibility Cable, SATA-DB9, Black, 305 mm170767-000

    LTE Advanced Pro (1200 Mbps) modem upgrade for Mobile

    • Includes IBR1700 & COR Extensibility Dock doors, no antennas†
    		MA-MC400-1200M-B

    UNITED STATES FEDERAL GOVERNMENT

    PART NUMBER

    Power Supply for North America, 12 V, 2x2, 2 metersTAA-170716-000
    Power Supply, Vehicle, 12 V, 2x2, 2 metersTAA-170635-000
    Small 2x2 Power to Barrel Adapter, 152 mmTAA-170665-000
    GPIO Cable, Small 2x2, Black, 3 meters, 22 AWGTAA-170585-001
    COR Extensibility Dock†TAA-170700-000
    GPIO Cable, SATA with Lock, Black, 1.7 metersTAA-170680-001

    LTE Advanced Pro (1200 Mbps) modem upgrade for Mobile

    • Includes IBR1700 & COR Extensibility Dock doors, no antennas†
    		TAA-MA-MC400-1200M-B

    The Ericsson Cradlepoint R500-PLTE router is only sold as components of NetCloud IoT Packages.

    • Ericsson NetCloud Packages include support for the full subscription term.
    • All Ericsson Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active NetCloud Service Plan.

    Find the most up-to-date information at cradlepoint.com/r500-plte
