Data sheet

RX20-MC

2023-08-24

The Ericsson Cradlepoint RX20-MC managed accessory is compact and ruggedized for use with the Ericsson Cradlepoint R920 ruggedized router. The RX20-MC includes both a modular modem expansion slot which provides the ability to add a second LTE or 5G modem for dual carrier connectivity and a RS-232 port for connecting serial devices.

Product PageNetCloud ServiceQuick Start Guide

SPECIFICATION



Technology:

RX20-MC Managed Accessory — Modular Modem

Expansion:

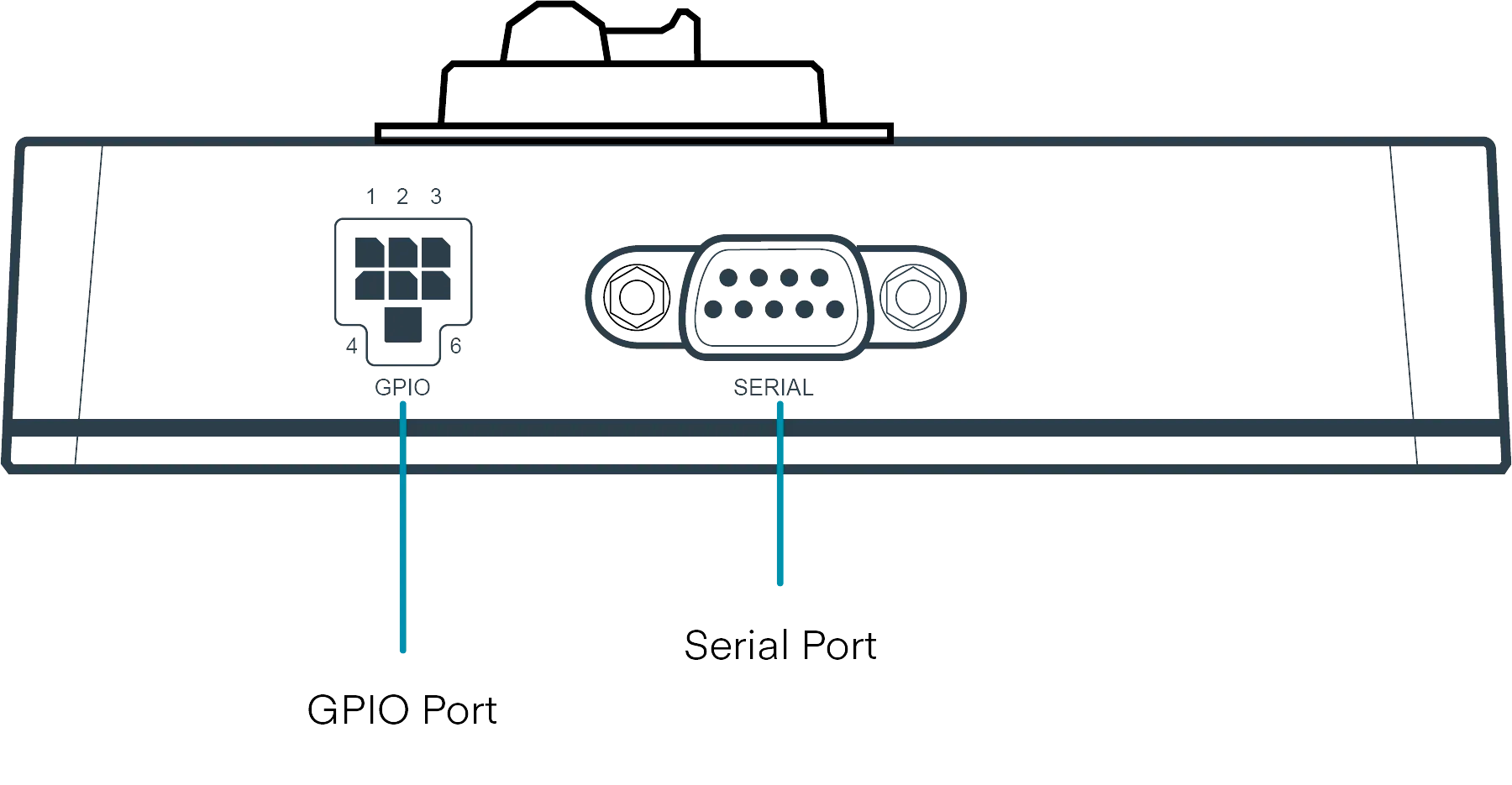

  • 1 x 6-pin GPIO connector
    • 2x3 Molex micro-fit

Refer to Cradlepoint General-Purpose Input/Output (GPIO) Reference.

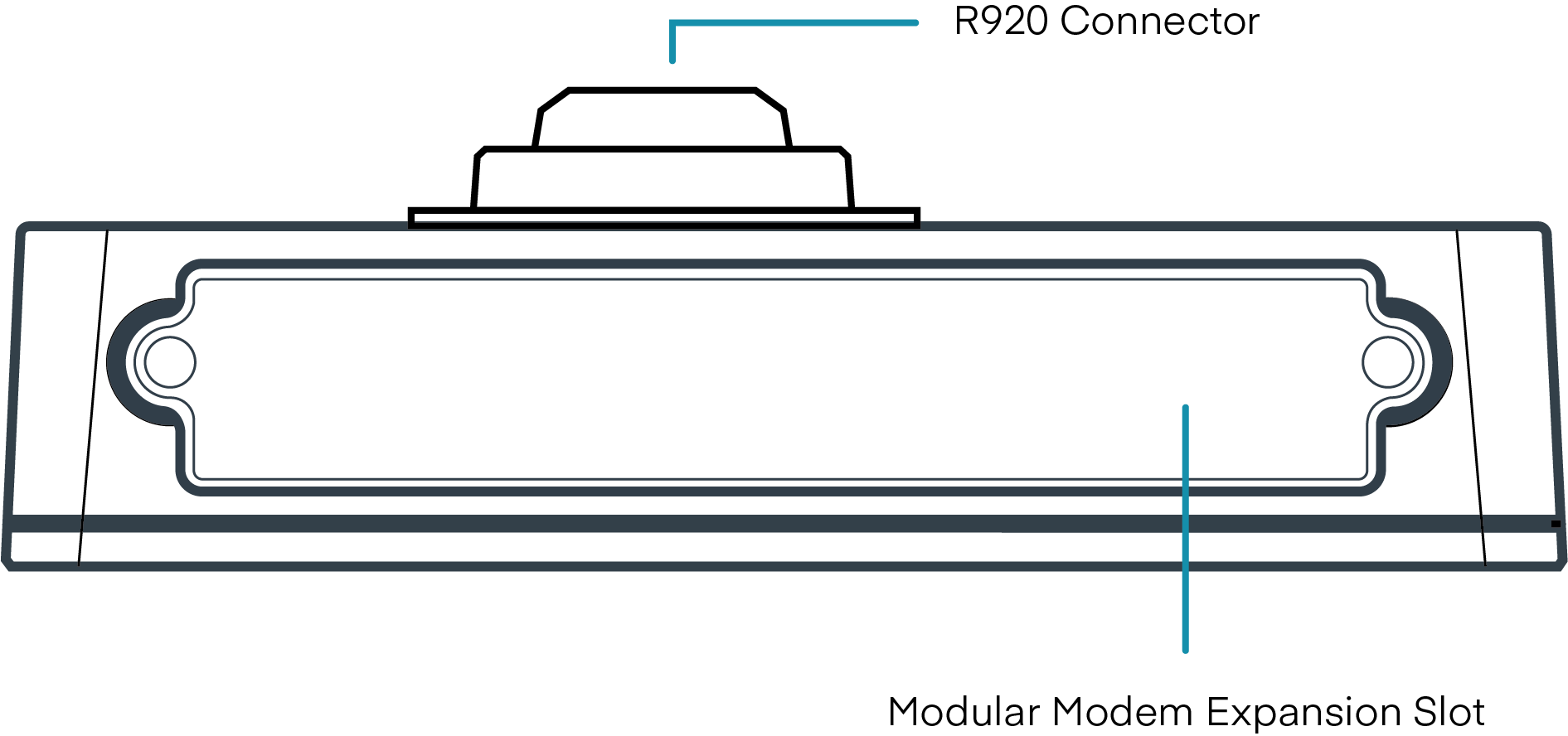

  • MC400 modem expansion slot
  • DB9 RS-232 serial port

Refer to Cradlepoint General-Purpose Input/Output (GPIO) Reference.

ENVIRONMENTAL



Temperature:

  • Operating: -30 °C to 70 °C (-22 °F to 158 °F)
  • Storage: -40 °C to 85 °C (-40 °F to 185 °F)

Humidity:

  • Operating: 10% to 90%
  • Storage: 5% to 95%

Ingress Protection:

IP64 (dust tight and splashing water)

POWER



Input:

Receives power from the host router.

Consumption†:

R920 + RX20 12V input, 25 °C (77 °F) ambient temperature

  • Sleep: 16 mW
  • Idle: 15 W
  • Typical: 19.3 W
  • Heavy: 23 W

PHYSICAL



Size:

137 x 116 x 42 mm (5.37 x 4.58 x 1.66 in)

Weight:

561 g (1 lb 3.8 oz)

RELIABILITY



Calculated MTBF:

7,814,449 hours (Telcordia SR332 at 25 °C)

CERTIFICATIONS



Safety:

  • UL/cUL
  • CB Scheme
  • EN 62368-1
Vehicle:E-Mark
Substance Compliance:
  • WEEE
  • RoHS
  • REACH
  • California Prop 65

Shock/Vibration/Humidity:

  • MIL STD 810G
  • SAE J1455

Electromagnetic Compatibility (EMC):

EN 55032/55035

COMPATIBILITY



Supported Routers:

R920 ruggedized router


Refer to the RX20 Managed Accessory Quick Start Guide.

† Power consumption values were measured with an MC400-5GB Modular Modem installed in the RX20 Managed Accessory.

The Ericsson Cradlepiont RX20-MC managed accessory is designed for the R920 router. Activation and use of the RX20-MC accessory require an Ericsson Cradlepoint R920 router that is licensed to an Ericsson NetCloud Service plan. For details on the features available to a licensed Ericsson Cradlepoint router by service plan, refer to the summary on the NetCloud Service webpage and the detail in the NetCloud Service features document.

NetCloud Packages for the RX20-MC Managed Accessory

REGION



PART NUMBER

All Regions:

RX20 Managed Accessory — Modular Modem (modem sold separately)

MA-RX20-MC

United States:
Federal Government

RX20 Managed Accessory — Modular Modem (modem sold separately)

TAA-MA-RX20-MC

INCLUDED

PART NUMBER

RX20-MC Managed Accessory

Small Accessories Kit

N/A

Mounting Template

N/A

The Ericsson Cradlepoint RX20-MC is sold only as an optional accessory.

All Ericsson Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active Ericsson NetCloud Service plan.

Find the most up-to-date information at cradlepoint.com/product/accessories/rx20-mc
