Data sheet

Ericsson Cradlepoint X10

2026-07-23T06:00:00.000Z

The Ericsson Cradlepoint X10 router is an ideal solution for providing enterprise-class business internet to small and medium sized businesses, temporary sites, and enabling mission-critical employees to work from home or outside the office with the same services, security and ease of management. The portable, compact form factor includes full-featured routing, switching, security, and Wi-Fi, making it easy to connect and maintain connectivity to the internet for supporting crucial business applications. The embedded 5G modem provides reliable, private, day-1 connectivity without waiting for a wired connection or having to depend upon best effort, consumer-class wireless solutions.

Ideal for Small and Medium Sized Businesses

The X10 router can be used as a primary connection, as part of a hybrid WAN or as a failover connection to a wired link. The X10 combines these flexible routing options with integrated switching and Wi-Fi to securely connect local devices for an all-in-one network. The X10 offers 5G performance, with 4G LTE fallback for comprehensive network coverage and the ability to deploy in more places. Businesses can also benefit from day-1 connectivity, without waiting for wireline service to be available in their location.

Great for Temporary Sites

The X10 router is perfect for pop-up stores, store-in-a-store, and other temporary sites like clinics and construction sites. These businesses can rapidly deploy and re-deploy their X10 router to new locations, providing maximum operational flexibility. They will also benefit from a reliable and stable 5G connection to ensure their business-critical functions are always connected. Whether it's facilitating transactions in pop-up retail spaces, enabling essential medical services in clinics, or supporting construction site operations, the X10 router provides a robust and consistent 5G connectivity experience.

INTERFACES
Modem:Embedded 5G FR1 NSA/SA 3GPP release 16 and 4G LTE Category 19 modem, including 4 x SMA cellular antenna connectors
Ethernet:5 x GbE RJ45 (LAN/WAN switchable)
Wi-Fi:

Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)

  • 2x2 MU-MIMO 802.11ac Wi-Fi 5 with DFS
  • 300 Mbps (2.4 GHz) and 867 Mbps (5 GHz)
  • Up to 248 Wi-Fi connections (124 per radio - 2.4 GHz and 5 GHz)
  • Internal 2x2 antenna
  • WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise, Open
  • Wi-Fi Alliance Certified
Expansion:1 x USB 2.0 Type A (Output: 5 V, 500 mA, 2.5 W)
GNSS/GPS:Passive GNSS
ENVIRONMENTAL
Temperature:
  • Operating: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage: -20 °C to 70 °C (-4 °F to 158 °F)
Humidity:
  • Operating: 10% to 90%
  • Storage: 5% to 95%
POWER
Required:

External power supply (included)

  • Input: 100-240 VAC 1 A
  • Output: 12 VDC 3 A
Backup:Up to 1 optional backup battery
Consumption:
  • Idle: 4 W
  • Idle Charging 1 Battery: 10 W
  • Typical Usage with Charging 1 Battery: 19.5 W
  • Heavy Usage with Charging 1 Battery: 22 W
PHYSICAL

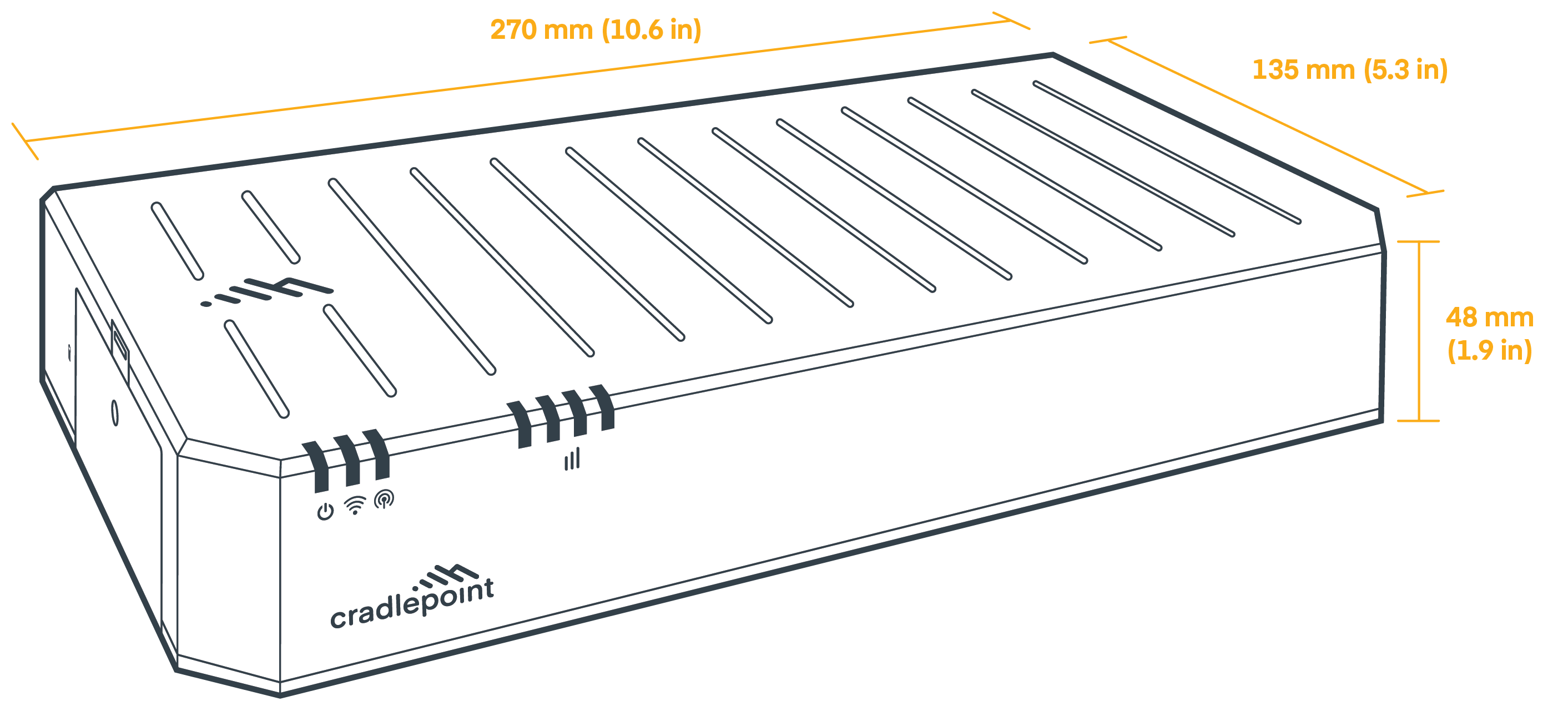

Size:135 × 270 × 48 mm (5.3 × 10.6 × 1.9 in)
Weight:.83 kg (1 lb 13 oz)
RELIABILITY
Calculated MTBF:527,789 hours (Telcordia SR332 at 25 degrees °C)
CERTIFICATIONS
Safety:
  • UL/cUL 62368-1
  • IEC 62368-1
  • CB Scheme
Substance Compliance:
  • California Prop 65
  • RoHS
Security:Secureboot
CLOUD SERVICES
Service Plans:NetCloud Connect
Service Add-Ons:NetCloud Exchange
Support:NetCloud Packages include support for the full subscription term.
Warranty:The X10 router is covered by a 12-month limited warranty.
Device Management:NetCloud Manager for the full subscription term.
Software Updates:NetCloud Manager for the full subscription term.
WI-FI POWER
FCC:
  • 2412-2462 MHz (2.4 GHz): 29.4 dBm EIRP
  • 5150–5250 MHz (5 GHz band 1): 29.85 dBm EIRP
  • 5250-5350 MHz (5 GHz band 2a): 27.91 dBm EIRP
  • 5470-5725 MHz (5 GHz band 2c): 27.62 dBm EIRP
  • 5745–5850 MHz (5 GHz band 3): 29.91 dBm EIRP
IC:
  • 2412-2462 MHz (2.4 GHz): 29.4 dBm EIRP
  • 5150–5250 MHz (5 GHz band 1): 25.46 dBm EIRP
  • 5250-5350 MHz (5 GHz band 2a): 22.94 dBm EIRP
  • 5470-5725 MHz (5 GHz band 2c): 27.59 dBm EIRP
  • 5745–5850 MHz (5 GHz band 3): 29.91 dBm EIRP
CE:
  • 2412-2472 MHz (2.4 GHz): 19.94 dBm EIRP
  • 5180–5240 MHz (5 GHz band 1): 22.22 dBm EIRP
  • 5260-5320 MHz (5 GHz band 2a): 22.57 dBm EIRP
  • 5500-5700 MHz (5 GHz band 2c): 26.26 dBm EIRP
PERFORMANCE†
Stateful Firewall:850 Mbps
IPS/Application Aware Services/Client Analytics:250 Mbps
Concurrent VPN Tunnels:20
Concurrent Sessions (TCP):32,000
IPsec VPN:40 Mbps
Typical Client Count:25 (up to 248 Wi-Fi connections††)
LEDs
 Refer to the X10-5GC Router Quick Start Guide.
BATTERY (OPTIONAL)
Size:120.5 x 81 x 24.5 mm (4.7 x 3.2 x 1.0 in)
Weight:.35 kg (12.2 oz)
Chemistry:Lithium-ion
Discharge Power:17 W
Capacity:7800mAh
Voltage:
  • Nominal 7.2 V
  • Max 8.4 V
Estimated Runtime:Single Battery: Up to 8 hours
†Performance testing conducted based on requirements as defined in RFC2544 using fixed-frame 1518-byte packets. Throughput results reflect uni-directional UDP traffic with less than 1% packet loss as tested with wired connections. Results do not reflect performance of the cellular wireless operator networks.
††Wi-Fi connections refer only to client association with the Wi-Fi radios and do not reflect overall endpoint performance and scale.

SPECIFICATIONX10-5GC
Technology:

5G FR1 NSA/SA

  • LTE Advanced Pro Category 19 fallback
  • Dual SIM slots, 4FF form factor
  • 3GPP Release 16
3G:UMTS/HSPA+
Carrier Aggregation:

5G SA

  • Downlink: Up to 2 CA
  • Uplink: 1 CA

5G NSA

  • Downlink: Up to 4 CA (LTE) + Up to 1 CA (5G NR)
  • Uplink: Up to 2 CA (LTE) + Up to 2 CA (5G NR)

LTE

  • Downlink: Up to 5 CA
  • Uplink: Up to 2 CA

See the Modem Carrier Aggregations article.

Peak Rates:

5G SA

  • Downlink: Up to 2.4 Gbps
  • Uplink: Up to 450 Mbps

5G NSA

  • Downlink: Up to 3.4 Gbps
  • Uplink: Up to 550 Mbps

LTE

  • Downlink: Up to 1.6 Gbps
  • Uplink: Up to 200 Mbps
MIMO:4x4 MIMO
Modulation:

5GC FR1

  • Downlink: Up to 256 QAM
  • Uplink: Up to 256 QAM
5G NR Bands:

NSA and SA

  • n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n13 (700), n14 (700), n18 (850), n20 (800), n25 (1900), n26 (850), n28 (700), n29 (700), n30 (2300), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n70 (2000), n71 (600), n75 (1500), n76 (1500), n77 (3700), n78 (3500), n79 (4900)
4G/LTE Bands:

FDD

  • B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)

TDD

  • B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
3G Bands:1, 2, 4, 5, 8, 19
Power:

5G NR

  • 5G NR bands: 23 dBm ± 2 (typical conducted)
  • 5G NR HPUE bands: 26 dBm ± 2 (typical conducted)

LTE

  • LTE bands: 23 dBm ± 2 (typical conducted)
  • LTE HPUE bands: 26 dBm ± 2 (typical conducted)
Antennas:SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 4, included)
GNSS/GPS:

Passive GNSS (multiplex with antenna ports 2 and 4)

  • GPS, GLONASS, BeiDou, Galileo, QZSS
SMS:Yes
Regulatory:
  • FCC (U.S.)
  • IC (Canada)
  • CE (EU)
  • RCM (AU/NZ)
  • UKCA (UK)
Network Operator Standards:
  • PTCRB (U.S., Canada)
  • GCF (Worldwide)
GCF Global Operators:https://www.globalcertificationforum.org/membership/gcf-members-directory.html†
PTCRB North America Operators:

https://www.ptcrb.com/about/

Network Operator Certifications†:
  • AT&T
  • T-Mobile
  • Verizon
Public Safety Network Certifications:N/A
Private Cellular Network:Yes, includes FCC Part 96 (CBRS Band 48)
†Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications. A carrier listed in the approvals section means Ericsson Enterprise Wireless Solutions completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.

SIM Card Info

INCLUDED

PART NUMBER

One of the following:

  • Power Supply, 12 VDC, 2X2 1.5 meters (North America)
  • Power Supply, 12 VDC, 2x2 1.5 meters (International)



170716-001

170717-000

Cellular Antenna, Charcoal, 600 MHz - 6 GHz, SMA, 180 mm (Qty 2)

170801-000

Cable, Ethernet RJ45-to-RJ45, Black, 1.5 meters

170725-000

Small Accessories Kit

  • SIM/battery door screws (Qty 2)
  • Rubber feet (Qty 4)

N/A

OPTIONAL

PART NUMBER

Single Battery Pack for E100 Series Router

170848-000

UNITED STATES FEDERAL GOVERNMENT

PART NUMBER

Cellular Antenna, Charcoal, 600 MHz - 6 GHz, SMA, 180 mm

TAA-170801-000

Find the most up-to-date information at cradlepoint.com/X10sp
