Data sheet

Ericsson Cradlepoint W1850

2026-08-27

Designed for branches that require the higher performance of 5G and the flexibility of wireless, the Ericsson Cradlepoint W1850 5G wideband adapter ushers in the next generation of Wireless WAN networking. The W-Series is designed to accommodate the diverse spectrums, multiple generations, and breadth of new technologies introduced in 5G while delivering enterprise-class standards of scalability, comprehensive management, and security.

High Performance Wideband

The W1850 5G adapters are purpose-built for deployment in the high-performance low-, mid-band 5G spectrum. To address the tradeoff of lower propagation in the mid-band spectrum, Ericsson designed the W-Series adapter to be placed separately from the router for optimal signal reception. The stylized W1850 5G adapter is designated for optimal indoor placement.

Designed for Enterprise-Class Business

While the performance of 5G is top of mind, the W-Series was also designed with enterprise-class standards for high scalability, comprehensive management, and security. Representing the latest available 5G standards which are a collection of spectrum, technologies, and network infrastructure enhancements, the Ericsson 5G edge networking service and endpoints accommodate the diverse deployments of an organization with hundreds or even tens of thousands of sites.

Product Page Ericsson NetCloud Service Quick Start Guide

Although each network operator conforms to 3GPP standards, they implement those standards differently to gain optimal efficiency and performance from their network. Additionally, software from modem manufacturers is designed to serve multiple operators within broad markets. The W-Series uses a customized software-defined modem, pre-programmed endpoints, and multilevel integrity testing to predict vulnerable connections and deliver carrier-class connectivity.

5G Spectrum Solutions

The W-Series portfolio supports all spectrum layers ensuring that organizations have the right solution for every location. The W1850 5G adapters support low- and mid-band layers.

Support for a Full Range of Cellular Technologies

Ericsson 5G solutions support all cellular generations, from 4G LTE to Gigabit-Class LTE to 5G — with the ability to gracefully transition tens of thousands of sites between generations as technology becomes available in individual locations.

Complete Lifecycle Management

Ericsson 5G solutions help enterprises minimize complexity from installation to troubleshooting with tools and features such as the mobile installation application, the captive modem feature, 5G tools demonstrate 5G service value, and Out-of-Band Management.

Intelligent Hybrid WAN Connectivity

Ericsson 5G solutions deliver effortless wireless endpoint management in a “wired-first SD-WAN” environment and provides all-in-one capabilities (routing, embedded wireless, and foundational SD-WAN) in a “wireless-first SD-WAN” deployment.

The following features are delivered through the hardware.

INTERFACES
Modem:	One of the following: Embedded 5G FR1 NSA/SA 3GPP release 15 and 4G LTE Category 20 modem, including 4 x SMA cellular antenna connectors Embedded 5G FR1 NSA/SA 3GPP release 16 and 4G LTE Category 19 modem, including 4 x SMA cellular antenna connectors
Ethernet:	2 x 2.5 GbE RJ45 (LAN/WAN switchable)
Expansion/Console:	1 USB 2.0 Type A (output 5 V, 500 mA, 2.5 W) 1 RJ-45 Console
Wi-Fi:	N/A
ENVIRONMENTAL
Temperature:	Operating: 32 °F to 122 °F (0 °C to 50 °C) Storage: -40 °F to 185 °F (-40 °C to 85 °C)
Humidity:	Operating: 10% to 90% Storage: 5% to 95%
Ingress Protection:	N/A
POWER
Required:	One of the following: External AC power supply, 100-240 VAC input (included) 802.3at PSE Type 2 (30 W)
Consumption:	PoE: 802.3at Class 4 PD (30 W)
PHYSICAL

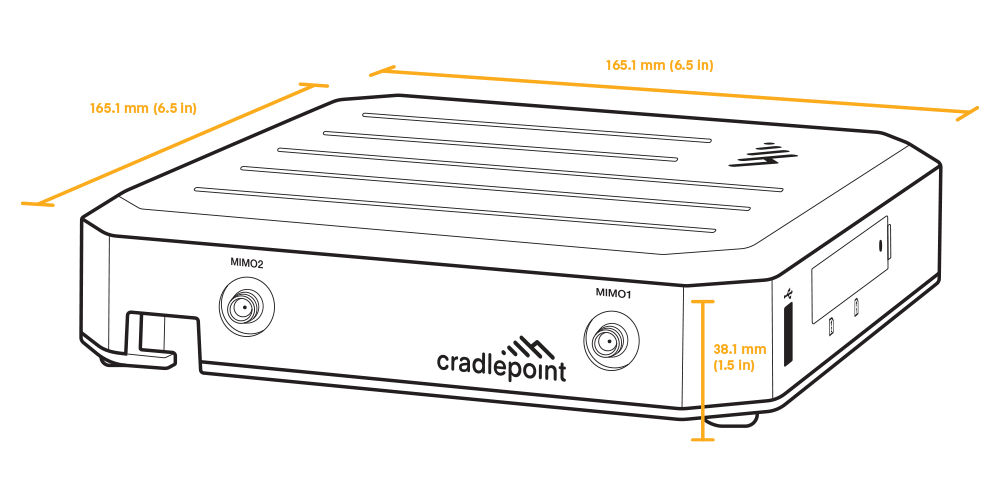

Size:	165.1 x 165.1 x 38.1 mm (6.5 x 6.5 x 1.5 in)
Weight:	0.86 kg (1 lb 14.4 oz)
RELIABILITY
Calculated MTBF:	W1850-5GB: 621,367 hours (Telcordia SR332 at 25 °C) W1850-5GC: 346,108 hours (Telcordia SR332 at 25 °C)
CERTIFICATIONS
Safety:	UL/cUL CB Scheme EN 60950-1 EN 62368-1
Substance Compliance:	WEEE RoHS REACH California Prop 65
CLOUD SERVICES
Service Plans:	Ericsson NetCloud Service for Branch 5G Adapter
Service Add-Ons:	NetCloud Exchange, Ericsson NetCloud Advanced
Support:	Ericsson NetCloud packages include support for the full subscription term.
Warranty:	All Ericsson Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active Ericsson NetCloud Service plan.
Device Management:	NetCloud Manager for the full subscription term.
Software Updates:	NetCloud Manager for the full subscription term.
PERFORMANCE
IP Passthrough Mode:	2.0 Gbps
Standard NAT Mode:	2.0 Gbps
Captive Modem Mode:	2.0 Gbps
LEDs
	Refer to the W1850 5G Wideband Adapter Quick Start Guide

Performance testing was conducted based on requirements as defined in RFC2544 using fixed-frame 1518-byte packets. Throughput results reflect uni-directional UDP traffic with less than 1% packet loss as tested with wired connections. Results do not reflect performance of the cellular wireless operator networks.

SPECIFICATION	W1850-5GB
Technology:	5G FR1 NSA/SA and 4G LTE LTE Advanced Pro Category 20 Dual SIM slots, 4FF form factor 3GPP Release 15
3G:	WCDMA/UMTS/HSPA+
Carrier Aggregation:	LTE + 5G NR ENDC Downlink: 1 CA Uplink: 1 CA LTE Only Downlink: Up to 7 CA Uplink: Up to 2 CA See Understanding Carrier Aggregation.
Peak Rates:	Downlink: Up to 4.14 Gbps Uplink: Up to 660 Mbps
MIMO:	4x4 MIMO
Modulation:	5GB FR1 Downlink: Up to 256 QAM Uplink: Up to 256 QAM. (Only enabled on particular carrier equipment from 9190 data sheet.)
5G NR Bands:	NSA and SA n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
4G/LTE Bands:	FDD B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600) TDD B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
3G Bands:	1, 2, 3, 4, 5, 6, 8, 9, 19
Power:	5G NR 5G NR bands: 23 dBm ± 1.5 (typical conducted) LTE + 5G NR ENDC LTE + 5G NR: 20 dBm ± 1 (typical conducted) LTE LTE bands: 23 dBm ± 1 (typical conducted) LTE HPUE: 25 dBm ± 1 (B41 standalone mode only)
Antennas:	SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 4, included)
GNSS/GPS:	Passive GNSS (multiplex with DIV/MIMO2 antenna ports)
SMS:	Yes
Regulatory:	FCC (U.S.) IC (Canada) CE (EU) RCM (AU/NZ)
Network Operator Standards:	PTCRB (U.S., Canada) GCF (Worldwide)
GCF Global Operators:	https://www.globalcertificationforum.org/membership/gcf-members-directory.html^†
PTCRB North America Operators:	https://www.ptcrb.com/about/
Network Operator Certifications^†:	AT&T T-Mobile Verizon
Public Safety Network Certifications:	FirstNet Trusted™ T-Mobile Connecting Heroes Verizon Frontline
Private Cellular Network:	Yes, includes FCC Part 96 (CBRS Band 48)

SPECIFICATION	W1850-5GC
Technology:	5G FR1 NSA/SA LTE Advanced Pro Category 19 fallback Dual SIM slots, 4FF form factor 3GPP Release 16
3G:	WCDMA/HSPA+
Carrier Aggregation:	5G NR Only Downlink: Up to 2 CA Uplink: 1 CA LTE + 5G NR ENDC Downlink: Up to 4 CA (LTE) + Up to 1 CA (5G NR) Uplink: Up to 2 CA (LTE) + Up to 2 CA (5G NR) LTE Only Downlink: Up to 5 CA Uplink: Up to 2 CA See Understanding Carrier Aggregation.
Peak Rates:	NSA Downlink: Up to 3.4 Gbps Uplink: Up to 550 Mbps SA Downlink: Up to 2.4 Gbps Uplink: Up to 450 Mbps LTE Downlink: Up to 1.6 Gbps Uplink: Up to 200 Mbps
MIMO:	4x4 MIMO
Modulation:	5GC FR1 Downlink: Up to 256 QAM Uplink: Up to 256 QAM
5G NR Bands:	NSA and SA n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n13 (700), n14 (700), n18 (850), n20 (800), n25 (1900), n26 (850), n28 (700), n29 (700), n30 (2300), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n70 (2000), n71 (600), n75 (1500), n76 (1500), n77 (3700), n78 (3500), n79 (4900)
4G/LTE Bands:	FDD B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600) TDD B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
3G Bands:	1, 2, 4, 5, 8, 19
Power:	5G NR 5G NR bands: 23 dBm ± 2 (typical conducted) 5G NR HPUE bands: 26 dBm ± 2 (typical conducted) LTE LTE bands: 23 dBm ± 2 (typical conducted) LTE HPUE bands: 26 dBm ± 2 (typical conducted)
Antennas:	SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 4, included)
GNSS/GPS:	Passive GNSS (multiplex with DIV/MIMO2 antenna ports) GPS GLONASS BeiDou Galileo QZSS
SMS:	Yes
Regulatory:	FCC (U.S.) IC (Canada) CE (EU) RCM (AU/NZ)
Network Operator Standards:	PTCRB (U.S., Canada) GCF (Worldwide)
PTCRB North America Operators:	https://www.ptcrb.com/about/
GCF Global Operators:	https://www.globalcertificationforum.org/membership/gcf-members-directory.html^†
Network Operator Certifications^†:	AT&T T-Mobile Verizon
Public Safety Network Certifications:	FirstNet Trusted™ T-Mobile Connecting Heroes Verizon Frontline
Private Cellular Network:	Yes, includes FCC Part 96 (CBRS Band 48)

^†Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications, to operate on their network. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.
^†Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications, to operate on their network. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.

SIM Card Info

Ericsson NetCloud Branch 5G Adapter Essentials + Advanced packages and plans full featured for 5G performance and connectivity. Essentials + Advanced packages include 24x7 support (phone support: 24-hour weekdays with emergency response on weekends, web: 24x7, chat: 24x5) and a limited lifetime warranty.

See additional details of what is included in the Essentials + Advanced NetCloud software: cradlepoint.com/netcloud-service

Ericsson NetCloud Enterprise Branch Packages for the W1850

REGION	MODEM	PACKAGE PLAN	PART NUMBER
North America & Latin America: U.S., Canada, Chile, Columbia, Costa Rica	5GB	Essentials Essentials + Advanced	BE0x-18505GB-GN BEAx-18505GB-GN
North America: U.S. and Canada	5GC	Essentials Essentials + Advanced	BE0x-1850-5GC-GN BEAx-1850-5GC-GN
United States Federal Government:	5GB	TAA Compliant NC — Essentials TAA Compliant NC — Essentials + Advanced	TAA-BE0y-18505GB-GN TAA-BEAy-18505GB-GN
	5GC	TAA Compliant NC — Essentials TAA Compliant NC — Essentials + Advanced	TAA-BE0y-1850-5GC-GN TAA-BEAy-1850-5GC-GN
Global:	5GB	Essentials Essentials + Advanced	BE0x-18505GB-GM BEAx-18505GB-GM
	5GC	Essentials Essentials + Advanced	BE0x-1850-5GC-GM BEAx-1850-5GC-GM
All Regions:		Renewal — Essentials Renewal — Advanced Renewal — Essentials + Advanced	BE0x-NCESS-R BE0x-NCADV-R BEAx-NCEA-R

x = 1, 3, or 5 years
y = 3 or 5 years

INCLUDED	PART NUMBER
Cable, Ethernet RJ45-to-RJ45, black, 1.5 meters	170725-000
W1850 Small Accessories Kit SIM door screw (Qty 1) Rubber feet (Qty 4) Wall mount screws (Qty 2) Anchors (Qty 2)	500062-000
One of the following: Power Supply, 12 V Barrel (Type A) — North America (NA)/Japan Power Supply, 12 V Barrel (Types A-G-C-I) — Global	170862-000 170863-000
Cellular Antenna, white, 600 MHz - 6 GHz, SMA, 180 mm (Qty 4) — North America/Global	170761-001
OPTIONAL	PART NUMBER
Rollover Adapter for RJ45 Ethernet M/F	170662-000
Rollover Serial Cable, RJ45-RJ45 Gray, 2.1 meters	170663-000
Rollover Serial Cable, RJ45-RJ45 Gray, 4.3 meters	170663-001
One of the following: Line Cord, 125 V, C13, 1.8 meters (North America Type B) Line Cord, 250 V, C13, 1.8 meters (Europe Type F) Line Cord, 250 V, C13, 1.8 meters (United Kingdom Type G) Line Cord, 250 V, C13, 1.8 meters (Australia Type I)	170671-001 170671-002 170671-003 170671-004
PoE Injector, 56 V, 0.8 A, 90 W, single port 2.5 GbE 802.3bt	170827-000
Power Supply, 12 V Barrel, 1.8 meters (North America Type A)	170862-000
Drop Ceiling Mounting Bracket	170876-001
One of the following: PoE Injector, 30 W, 802.3at with 1.8 meters C13 line cord (North America Type B) PoE Injector, 30 W, 802.3at with 1.8 meters C13 line cord (Europe Type F) PoE Injector, 30 W, 802.3at with 1.8 meters C13 line cord (United Kingdom Type G) PoE Injector, 30 W, 802.3at with 1.8 meters C13 line cord (Australia Type I)	170877-000 170877-001 170877-002 170877-003
UNITED STATES FEDERAL GOVERNMENT	PART NUMBER
Drop Ceiling Mounting Bracket	TAA-170876-001

The Ericsson Cradlepoint W1850 adapters are only sold as components of Ericsson NetCloud Branch 5G Performance Adapter Essentials + Advanced packages.

Ericsson NetCloud packages include support for the full subscription term.
All Ericsson Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active Ericsson NetCloud Service plan.
